Brakes - Brake Pedal - Brake Pedal - Pedal Assembly, RHD - Remove And Replace: Install
- Position the brake pedal assembly onto the body.

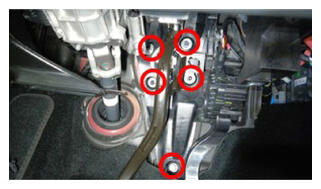

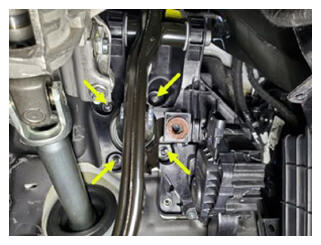

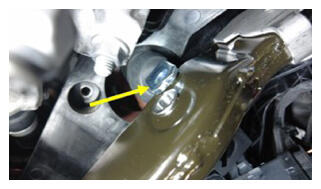

- Install the bolt and the new nuts (x4) that attach the brake pedal assembly to the vehicle.
16.5 N.m (12.2 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 13 mm deep socket
- 4 in extension
- Ratchet/torque wrench

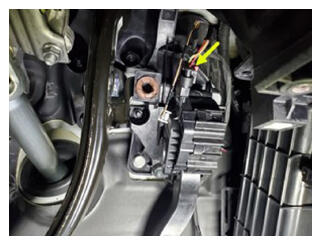

- Connect the accelerator pedal electrical connector.
- Install the brake clevis clip. See BRAKES - BRAKE PEDAL - BRAKE PEDAL - BRAKE PEDAL CLEVIS PIN - REMOVE AND REPLACE .
- Install the RH footwell cover. See RHD INSTRUMENT PANEL - INSTRUMENT PANEL - DASH SUPPORT FRAME - DRIVER FOOTWELL ASSEMBLY - REMOVE AND REPLACE .
- Connect the LV battery power. See LV BATTERY - LI-ION - DISCONNECT AND CONNECT .
- Connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
- Click the Actions tab, and then type "TEST-SELF_DI_X_ACCEL-PEDAL" into the search field.
- Click TEST-SELF_DI_X_ACCEL-PEDAL(i) , click Run , and allow the routine to complete.
- Disconnect the laptop with Toolbox 3 from the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
- Install the rear apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
- Move the driver seat back to its original position.
- Raise the RH front window and close the RH front door.
