- Remove the driver footwell cover. See DASH PANEL - DRIVER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE
.
- Remove the LH footwell duct. See INTERIOR DUCTING AND VENTS - IP, DRIVER, FOOTWELL, DUCT - REMOVE AND REPLACE
.

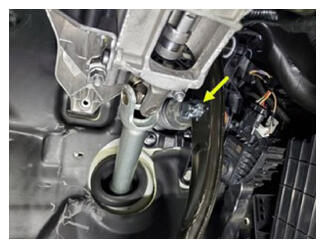

- Release the cotter clip that attaches the brake clevis clip pin to the pedal assembly.
NOTE:
Remove the cotter clip by hand.
 Courtesy of TESLA, INC.
|

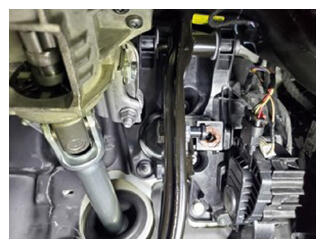

- Remove the brake clevis clip pin from the brake pedal assembly, and then release the clevis clip from the pedal.
NOTE:
Wiggle the brake pedal to aid in pin removal.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
