Brakes - Brake Pedal - Brake Pedal - Brake Pedal Clevis Pin - Remove And Replace: Install

  1. Align the brake pedal with the iBooster rod, and then install the brake clevis clip pin that attaches the clevis clip to the brake pedal assembly.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.

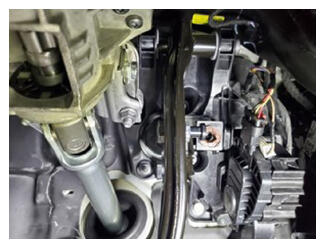

    G16603451Courtesy of TESLA, INC.
  2. Install the cotter clip that attaches the brake clevis clip pin to the pedal assembly.
    NOTE: Move all parts to their original positions. Replace the cotter clip if damaged.

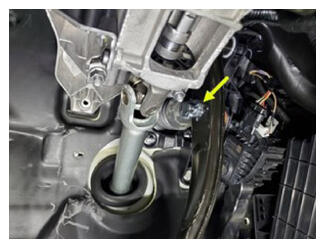

    G16603452Courtesy of TESLA, INC.
  3. Install the LH footwell duct. See INTERIOR DUCTING AND VENTS - IP, DRIVER, FOOTWELL, DUCT - REMOVE AND REPLACE .
  4. Install the driver footwell cover. See DASH PANEL - DRIVER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE .
