Brakes - Brake Discs and Calipers - Rear Brake Rotors - Calipers and Pads - RR Brake Rotors, Base Cast Iron, LH - Remove And Replace: Install

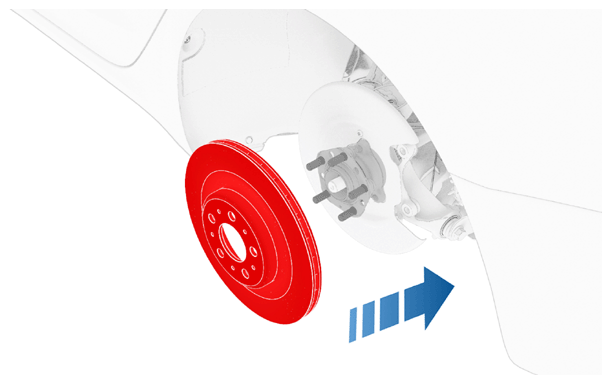

- Install the LH rear rotor onto the vehicle.

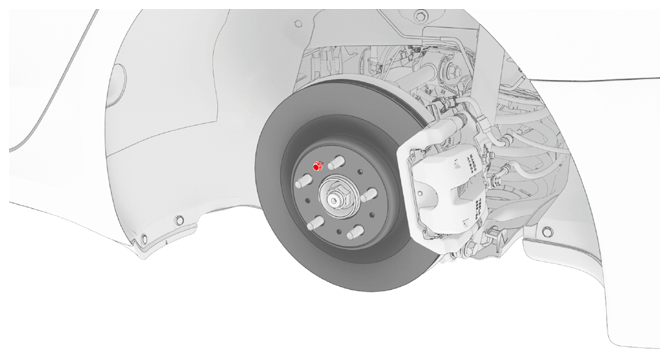

- Install the bolt that attaches the LH rear brake rotor to the LH rear hub.
5 N.m (3.7 lbs-ft)
NOTE: Use of the following tool(s) is recommended:- Cordless Ratchet/Impact Driver
- 10 mm socket
- 2 in extension

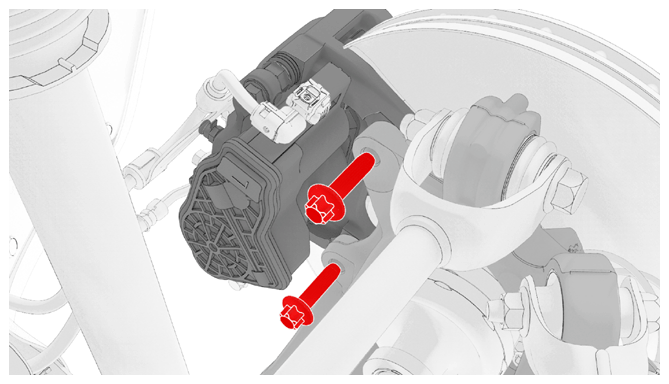

- Install new bolts (x2) that attach the LH rear caliper to the LH rear knuckle.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- External Torx E18
- 3 in extension
- Ratchet/torque wrench
CAUTION: To prevent damage to the flexible brake hose, make sure that the brake hose can bend forward and does not make contact with the wheel arch liner when the vehicle is lowered. - Connect the LH rear EPB caliper connector.
- Install the LH rear wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
- Exit the vehicle from "Towing" mode.
- Raise the LH front window and close the LH front door.
- Lower the vehicle. See RAISE VEHICLE - 2 STANDS .
