RHD Brakes - Electromechanical Brake Booster - Electromechanical Brake Booster - Brake Booster and Master Cylinder Assembly (RR) - Remove And Replace: Remove
- Open the RH front door and lower the RH front window.
- Move the RH front seat backward.
- Disconnect the LV battery power. See LV BATTERY - LI-ION - DISCONNECT AND CONNECT .
- Remove the wiper module. See RHD ELECTRICAL - WIPERS AND WASHER - WINDSHIELD WIPERS AND MOTOR - WIPER MODULE - REMOVE AND REPLACE .
- Disconnect the connector under the brake fluid reservoir.
- Disconnect the connectors (x2) from the brake booster assembly.NOTE: Pull the red tabs to disengage the locks, then press and hold the black tabs to release the connectors.
- Disconnect the harness connectors (x2) from the brake booster assembly.
- Place absorbent material underneath the brake booster and the reservoir area, clean the area around the brake fluid reservoir, and then remove the brake reservoir cap.
- Remove the fluid from the brake fluid reservoir by using a brake fluid syringe.
- Remove the nuts (x2) that attach the forward and rear brake lines to the brake booster.
Tip: Use of the following tool(s) is recommended:
- 12 mm 12 pt combination wrench
- 1/4 in to 3/8 in adapter
- 12 mm 3/8 in Dr. Flare Nut Crowfoot Socket
- Ratchet/torque wrench
- Remove the clevis pin. See BRAKES - BRAKE PEDAL - BRAKE PEDAL - BRAKE PEDAL CLEVIS PIN - REMOVE AND REPLACE .NOTE: It is not necessary for RHD vehicles to remove the footwell duct when removing the clevis clip.

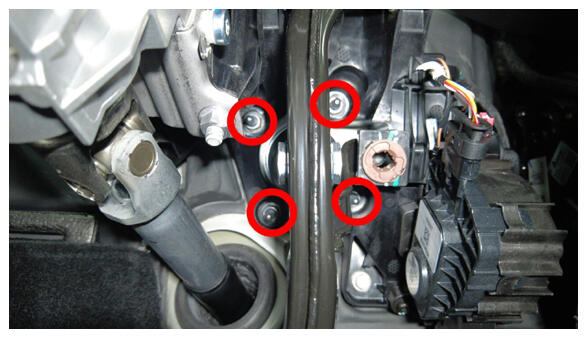

- Remove and discard the nuts (x4) that attach the booster to the bulkhead.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 13 mm 12-point deep socket
- 6 in extension
- Remove the brake booster assembly from the vehicle.
