RHD Brakes - Electromechanical Brake Booster - Electromechanical Brake Booster - Brake Booster and Master Cylinder Assembly (RR) - Remove And Replace: Notes

Last modified: 18/06/2024 00:53:51

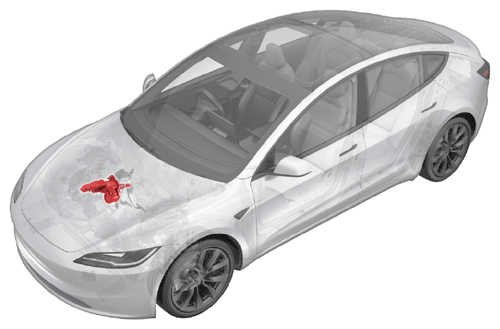

Fig 1: Brake Booster And Master Cylinder Assembly Component Location (RHD)

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2024-06-17: Added step to perform test drive and add correction code 00040100 as a separate activity to the Service Visit.

TORQUE SPECIFICATIONS - RHD BRAKES - ELECTROMECHANICAL BRAKE BOOSTER - ELECTROMECHANICAL BRAKE BOOSTER - BRAKE BOOSTER AND MASTER CYLINDER ASSEMBLY (RR) (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Nuts (x2) that attach the forward and rear brake lines to the brake booster	16 N.m (11.8 lbs-ft)	12 mm 12 pt combination wrench 1/4 in to 3/8 in adapter 12 mm 3/8 in Dr. Flare Nut Crowfoot Socket Ratchet/torque wrench	Reuse
Nuts (x4) that attach the booster to the bulkhead	16.5 N.m (12.2 lbs-ft)	Ratchet/torque wrench 13 mm 12-point deep socket 6 in extension	Replace	1111541-00-A
