Underhood Trim - Cowl Screen Carrier Bracket LH - Remove And Replace: Install

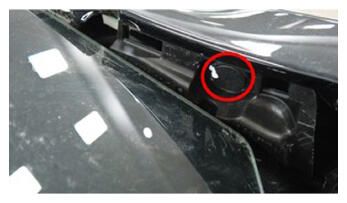

  1. Install the clip that attaches the bracket to the vehicle.
    G16588578Courtesy of TESLA, INC.

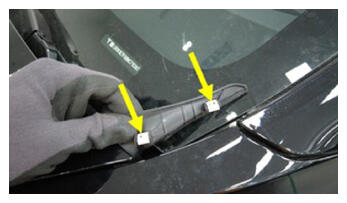

  2. Install the LH clips (x2) of the cowl screen that attach the cowl screen to the bracket.
    G16588579Courtesy of TESLA, INC.
  3. Open the hood and remove the towel.
  4. Install the LH hood hinge cover. See HOOD HINGES AND FITTINGS - HOOD HINGE COVER LH - REMOVE AND REPLACE .
