Exterior Trim Fittings - Upper Bright Trim Cap LH - Black - Remove And Replace: Remove

Remove the LH B-pillar applique. See EXTERIOR TRIM FITTINGS - LHD - ASSEMBLY B-PILLAR APPLIQUE LH - REMOVE AND REPLACE .

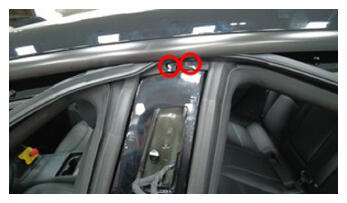

Remove the fir tree clips (x2) that attach the primary body seals to the vehicle.

Courtesy of TESLA, INC.

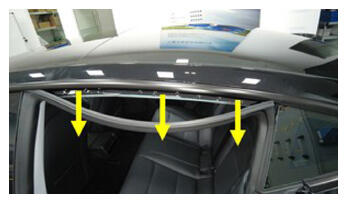

Pull down to release the front and rear primary body seals from the LH upper brightwork.
NOTE: Start from the upper corner closest to the B-pillar applique, and then pull straight down along the length of the seal to fully release the seal from the upper brightwork.

Courtesy of TESLA, INC.

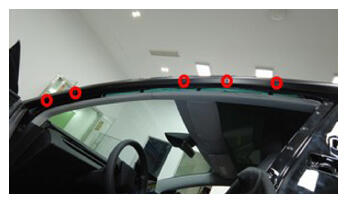

Remove the screws (x5) that attach the front portion of the LH upper brightwork to the body.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 2 in extension
- Torx T20 socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.

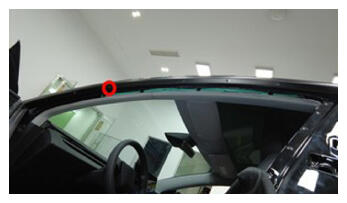

Remove the push rivet that attaches the front of the LH upper brightwork to the body.

Courtesy of TESLA, INC.

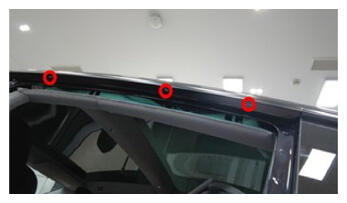

Remove the screws (x3) that attach the rear portion of the LH upper brightwork to the body.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 2 in extension
- Torx T20 socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.

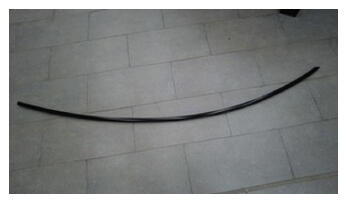

With assistance, remove the LH upper brightwork from the vehicle.
NOTE: Start from the front of the trim and work rearward. The rear of the trim engages the rear quarter glass.

CAUTION: Be careful not to damage paint and/or quarter glass when removing the trim.

Courtesy of TESLA, INC.

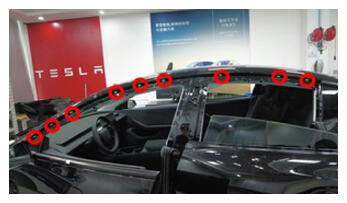

Remove and discard the grommets (x9) from the body.

Courtesy of TESLA, INC.
