Exterior Trim Fittings - Upper Bright Trim Cap LH - Black - Remove And Replace: Install

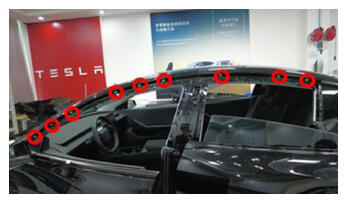

Install new grommets (x9) into the body where the LH upper brightwork will install.

Courtesy of TESLA, INC.

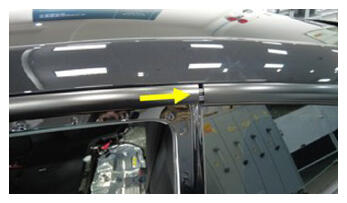

With assistance, carefully position the LH upper brightwork onto the vehicle.
NOTE: Starting at the rear quarter glass, ensure the bright trim is fully seated on the dowel protruding out of the rear quarter glass.

CAUTION: Be careful not to damage paint and/or quarter glass when removing the trim.

Courtesy of TESLA, INC.

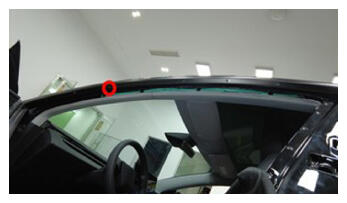

Install the push rivet that attaches the front of the LH upper brightwork to the body.

Courtesy of TESLA, INC.

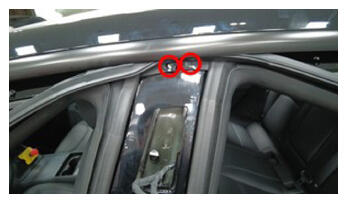

Install the screws (x5) that attach the front portion of the LH upper brightwork to the body.
1.1 N.m (.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 2 in extension
- Torx T20 socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.

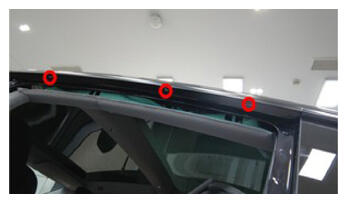

Install the screws (x3) that attach the rear portion of the LH upper brightwork to the body.
1.1 N.m (.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 2 in extension
- Torx T20 socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.
Press up to fasten the rear and front primary body seals onto the LH upper brightwork.
NOTE: Work from the rear corner of each seal forward, and make sure that the seal fully engages the brightwork. When installed correctly, the seal edge is not visible.
Work each seal around the opening so as to evenly distribute it.
NOTE: Make sure to push the seal into each corner.
Install the fir tree clips (x2) that attach the primary body seals to the vehicle.

Courtesy of TESLA, INC.
Install the LH B-pillar applique. See EXTERIOR TRIM FITTINGS - LHD - ASSEMBLY B-PILLAR APPLIQUE LH - REMOVE AND REPLACE .
