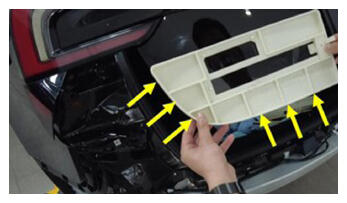

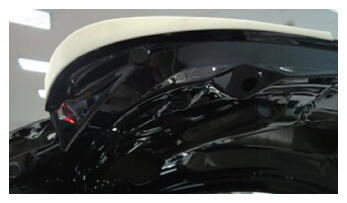

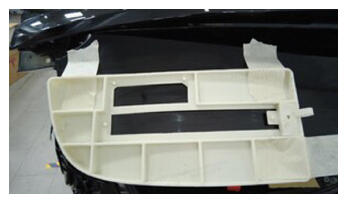

- Adjust the trunk to an appropriate height, install the trunk badge alignment tool (1967006-00-A) into position on the trunk lid and tape the tool in place.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

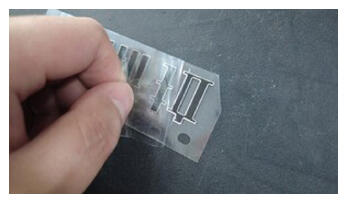

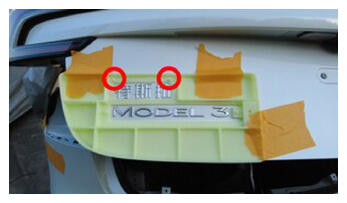

- Peel the adhesive backing from the Chinese Tesla badge, then place the badge into the jig. Align the holes of the protective film to the pins of jig, then press the badge to the trunk.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the protective film from the badge, and then remove the jig from the vehicle.
NOTE:
Do not discard the protective film, it will be used again in the next step.
- Replace the protective film over the badge, use a pressure roller (1465974-00-A) to fully adhere the badge, and then remove the protective film.
CAUTION:
Be careful not to damage the badge during the rolling process.
- Use an IPA wipe to clean the badge and the area around the badge.
NOTE:
Make sure that all edges of the badge are securely affixed to the trunk lid surface.
- Close the trunk.
