Seats - Front Seat Tracks and Motors - 1st Row Cushion Blower - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the driver seat fully forward.

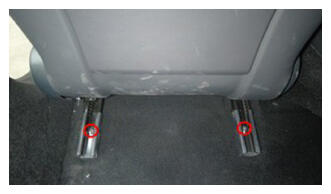

  3. Remove and discard the bolts (x2) that attach the rear of the driver seat to the body.
    CAUTION: Use only the Torx Plus T45 bit to remove the seat bolts.
    NOTE: Use of the following tool(s) is recommended:
    • Torx Plus T45 socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
    G16588827Courtesy of TESLA, INC.
  4. Move the driver seat fully rearward.

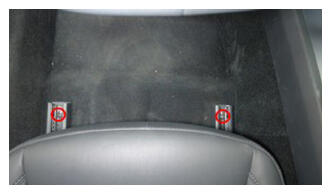

  5. Remove and discard the bolts (x2) that attach the front of the driver seat to the body.
    CAUTION: Use only the Torx Plus T45 bit to remove the seat bolts.
    NOTE: Use of the following tool(s) is recommended:
    • Torx Plus T45 socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
    G16588828Courtesy of TESLA, INC.

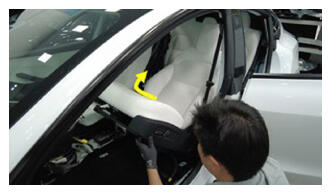

  6. Tilt the driver seat rearward to gain access to the driver seat cushion ventilation fan.
    G16588829Courtesy of TESLA, INC.

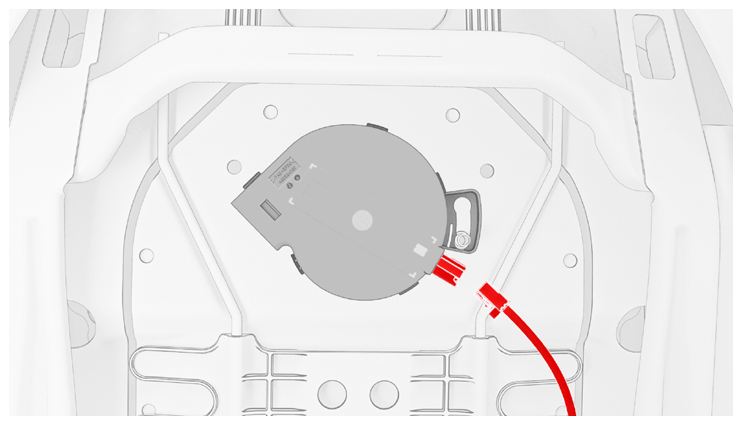

  7. Disconnect the electrical connector from the driver seat cushion ventilation fan.
    G16588830Courtesy of TESLA, INC.

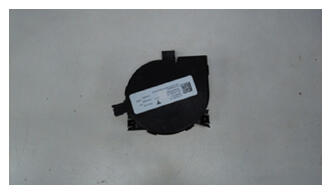

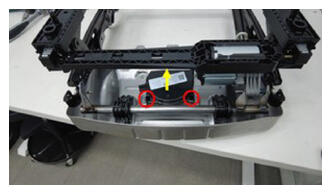

  8. Release the clips (x2) and guide tab that attach the driver seat cushion ventilation fan to the driver seat frame, and then remove the fan from the vehicle.
    G16588831Courtesy of TESLA, INC.
    G16588832Courtesy of TESLA, INC.
