Seats - Front Seat Tracks and Motors - 1st Row Cushion Blower - Remove And Replace: Install

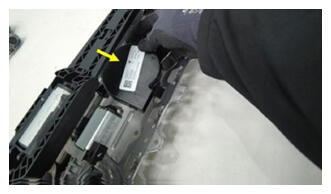

  1. Fasten the clips (x2) and guide tab that attach the driver seat cushion ventilation fan to the driver seat frame.
    G16588833Courtesy of TESLA, INC.

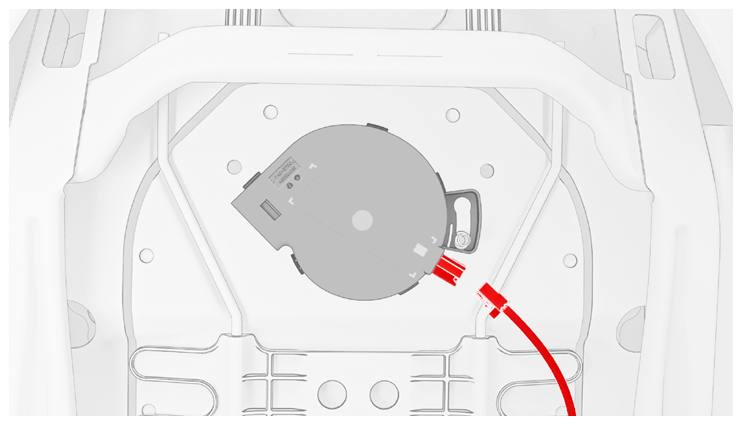

  2. Connect the electrical connector to the driver seat cushion ventilation fan.
    G16588834Courtesy of TESLA, INC.
  3. Tilt the driver seat forward back to its original position.

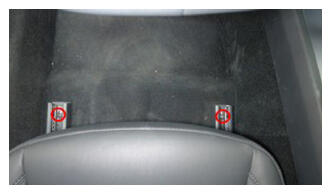

  4. Install new bolts (x2) that attach the front of the driver seat to the body.

    33.5 N.m (24.7 lbs-ft)

    CAUTION: Use only the Torx Plus T45 bit to remove the seat bolts.
    NOTE: Use of the following tool(s) is recommended:
    • Torx Plus T45 socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
    G16588835Courtesy of TESLA, INC.
  5. Move the driver seat fully forward.

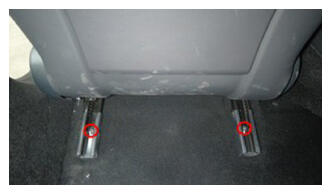

  6. Install new bolts (x2) that attach the rear of the driver seat to the body.

    33.5 N.m (24.7 lbs-ft)

    NOTE: Use of the following tool(s) is recommended:
    • Torx Plus T45 socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
    G16588836Courtesy of TESLA, INC.
  7. Move the driver seat back to its original position.
  8. Raise the LH front window and close the LH front door.
