Seats - Front Seat Tracks and Motors - 1st Row Backrest Ventilation Fan - Remove And Replace: Install

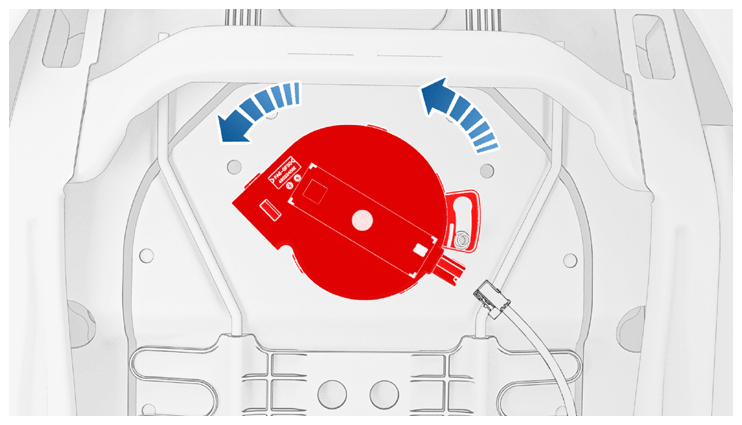

  1. Rotate the fan counterclockwise to install the backrest ventilation fan.
    G16588824Courtesy of TESLA, INC.

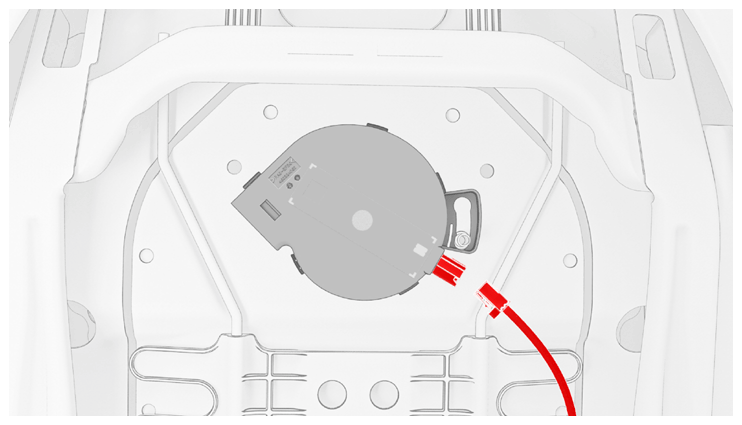

  2. Connect the electrical connector to the driver seat cushion ventilation fan.
    G16588825Courtesy of TESLA, INC.
  3. Install the driver seat back shell. See FRONT SEAT COVERS AND PADS - 1ST ROW SEATBACK SHELL ASSEMBLY - REMOVE AND REPLACE .
