2nd Row Seat Assemblies - 2nd Row Seat Cushion - Remove And Replace: Remove

  1. Open all four doors and lower all four windows.
    NOTE: If the vehicle is being powered down, latch the rear doors to prevent accidental closure.
  2. Move the driver seat and the front passenger seat fully forward.
  3. While pressing the LH and RH tabs towards the vertical backward of the vehicle, lift the front edge of the seat cushion.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.

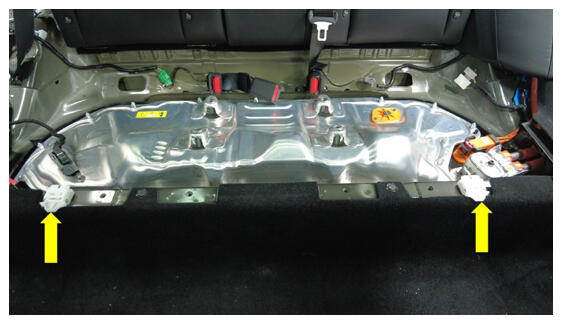

    G16588961Courtesy of TESLA, INC.
  4. Disconnect the electrical connectors (x2) of the seat cushion, and then remove the seat cushion from the vehicle.
    G16588962Courtesy of TESLA, INC.
    G16588964Courtesy of TESLA, INC.
