2nd Row Seat Assemblies - 2nd Row Bolster - LH - Remove And Replace: Remove

  1. Open the LH rear door.
  2. Lower the LH rear window.
  3. Fold down the LH 2nd row seat.
  4. Pull the 2nd row side bolster outward, and then move the bolster up to remove from the vehicle.
    WARNING: The retaining clips may become dislodged when performing this procedure. Wear eye protection to avoid personal injury.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16588932Courtesy of TESLA, INC.
    G16588933Courtesy of TESLA, INC.

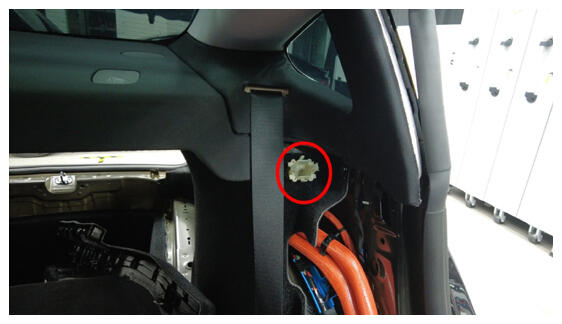

  5. Remove and discard the bolster plastic bracket from the vehicle.
    NOTE: The bracket might have come out with the bolster.
    G16588934Courtesy of TESLA, INC.
    G16588935Courtesy of TESLA, INC.
