Underhood Trim - Rear Apron Assembly - Remove And Replace: Remove

  1. Open the hood.

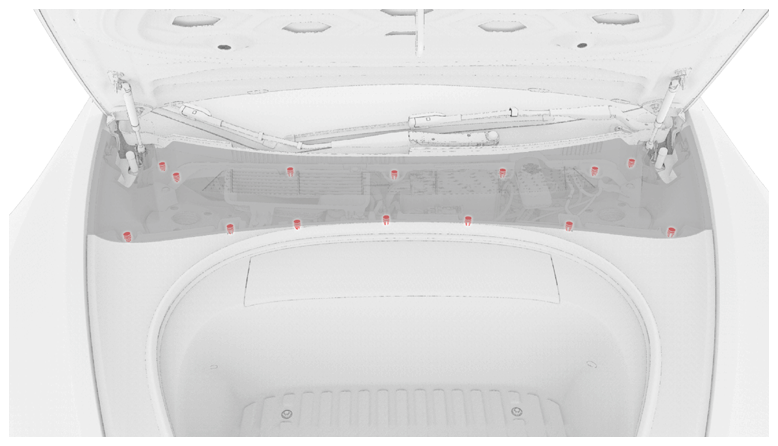

  2. Use the clip tool to release the clips (x14) that attach the rear underhood apron to the vehicle, and then remove the apron from the vehicle.
    G16588582Courtesy of TESLA, INC.
