Bracket - License Plate - Rear (EMEA) - Remove And Replace: Remove

  1. Prepare the badge removal tool with approximately 60 centimeters of monofilament line.

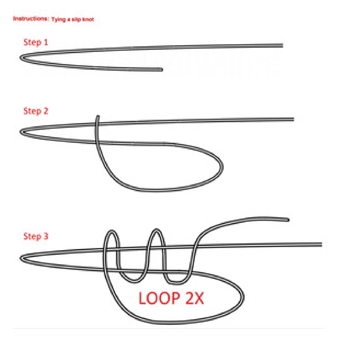

  2. Tie slip knots at both ends of the monofilament line and attach them each to the center groove of a handle.
    G16588405Courtesy of TESLA, INC.
  3. Remove the screws that attach the rear license plate bracket to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 2 in extension
    • Cordless Ratchet/Impact Driver
    G16588406Courtesy of TESLA, INC.
  4. Position the wire of the badge removal tool behind the license plate bracket, and then move the tool in a sawing motion to separate the bracket from the vehicle.
    G16588407Courtesy of TESLA, INC.
  5. Clean all adhesive residue from the vehicle, using an eraser wheel and IPA wipes.
    NOTE: Allow 1 minute to dry.
