Passenger Compartment Carpet - Main Cabin Carpet Rear - Remove And Replace: Remove

  1. Remove the center console rear end panel. See CENTER CONSOLE - CONSOLE REAR END PANEL, ASSEMBLY - REMOVE AND REPLACE .
  2. Remove the LH and RH 2nd row seat side bolsters. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
  3. Remove the 2nd row lower seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE .
  4. Remove the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
  5. Remove the LH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  6. Remove the LH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  7. Remove the RH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  8. Remove the RH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  9. Disconnect LV power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .
  10. Remove the front passenger seat. See FRONT SEAT ASSEMBLIES - 1ST ROW SEAT ASSEMBLY, RH, NO LUMBAR - REMOVE AND REPLACE .
  11. Remove the driver seat. See FRONT SEAT ASSEMBLIES - 1ST ROW SEAT ASSEMBLY, LH - REMOVE AND REPLACE .

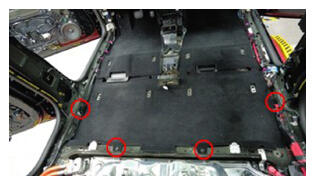

  12. Remove the push clips (x4) attach the rear main cabin carpet to the body.
    G16590656Courtesy of TESLA, INC.

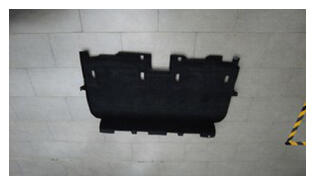

  13. Remove the rear main cabin carpet from the vehicle.
    G16590657Courtesy of TESLA, INC.
