Passenger Compartment Carpet - Main Cabin Carpet Rear - Remove And Replace: Install

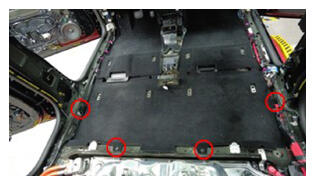

  1. Install the rear main cabin carpet to the vehicle.
    NOTE: Secure the rear carpet with the push clips (x4).
    G16590658Courtesy of TESLA, INC.
  2. Install the driver seat. See FRONT SEAT ASSEMBLIES - 1ST ROW SEAT ASSEMBLY, LH - REMOVE AND REPLACE .
  3. Install the front passenger seat. See FRONT SEAT ASSEMBLIES - 1ST ROW SEAT ASSEMBLY, RH, NO LUMBAR - REMOVE AND REPLACE .
  4. Connect LV power. See LV BATTERY - LI-LON - DISCONNECT AND CONNECT .
  5. Install the RH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  6. Install the RH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  7. Install the LH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  8. Install the LH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE .
  9. Install the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE .
  10. Install the 2nd row lower seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE .
  11. Install the LH and RH 2nd row seat side bolsters. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
  12. Install the center console rear end panel. See CENTER CONSOLE - CONSOLE REAR END PANEL, ASSEMBLY - REMOVE AND REPLACE .
