Passenger Compartment Carpet - Main Cabin Carpet RH - Remove And Replace: Install

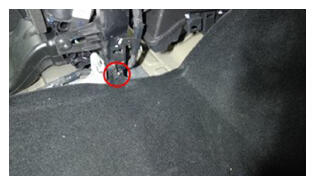

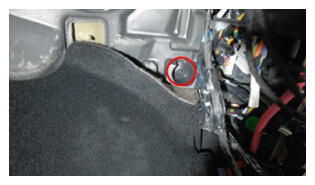

- Install the RH front carpet into the vehicle, and then fasten the clips (x2) that attach the RH front carpet to the body.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the RH center console rear side panel. See CENTER CONSOLE - REAR SIDE PANEL, LH, ASSEMBLY - REMOVE AND REPLACE
- Install the RH center console front side panel. See CENTER CONSOLE - CONSOLE SIDE PANEL, CARPET, RH, LHD - REMOVE AND REPLACE .
- Install the RH front floor mat. See PASSENGER COMPARTMENT CARPET - FLOOR MAT KIT, LHD - REMOVE AND REPLACE .
- Install the RH front footwell cover. See DASH PANEL - PASSENGER FOOTWELL COVER ASSEMBLY - REMOVE AND REPLACE
.
- Install the front passenger seat. See FRONT SEAT ASSEMBLIES - 1ST ROW SEAT ASSEMBLY, RH, NO LUMBAR - REMOVE AND REPLACE
.
