Electrical - Wipers and Washers - Windshield Wipers and Motor - Wiper Arm DR - Remove And Replace: Install

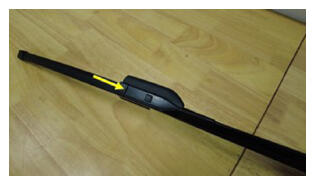

Install the LH wiper blade to the LH wiper arm.

Courtesy of TESLA, INC.
Position the LH wiper arm and the blade onto the vehicle.

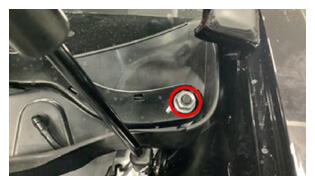

Tighten the nut that attaches the LH wiper arm to the wiper module.
25 N.m (18.4 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 15 mm socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.

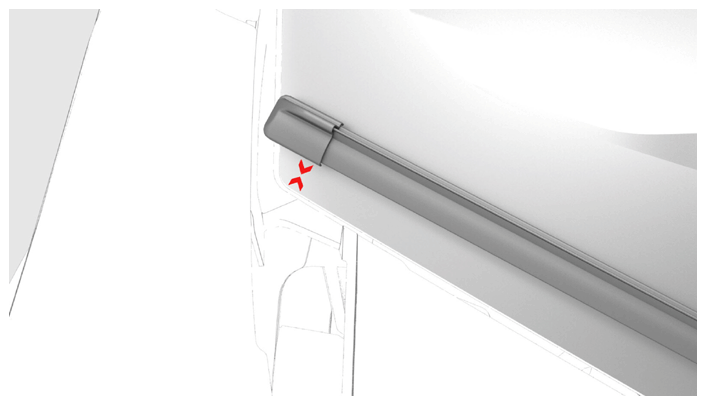

Align the tip of the LH wiper blade between the two arrows on the windshield.
NOTE: The LH wiper blade should be approximately 5 - 10 mm from, and parallel to, the front edge of the windshield.

Courtesy of TESLA, INC.

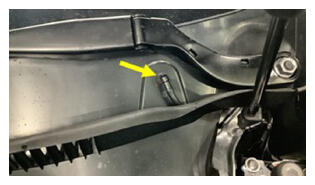

Install the LH wiper arm hose nozzle.
NOTE: Make sure to route the hose below the LH wiper arm.

Courtesy of TESLA, INC.

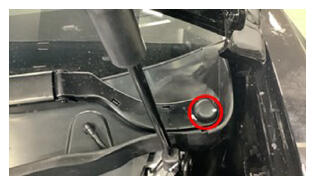

Install the LH wiper arm nut cover.

Courtesy of TESLA, INC.
Close the hood.
Raise the LH front window and close the LH front door.
