Tail Lights - Lamp Assembly, Rear Fascia Lamp, LH - Remove And Replace: Remove

  1. Remove the rear fascia and place it on a padded surface. See BUMPER AND FASCIA - REAR BUMPER FASCIA - REAR FASCIA - REMOVE AND INSTALL .

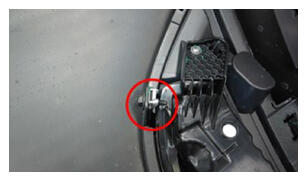

  2. Remove the bolt that attaches the rear upper fascia to the rear fascia.

    Tip: Use of the following tool(s) is recommended:

    • Ratchet/torque wrench
    • 10 mm socket
    G16596356Courtesy of TESLA, INC.

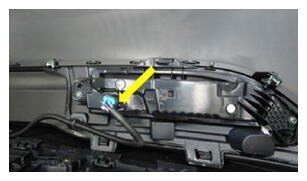

  3. Disconnect the LH rear fascia lamp connector.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16596358Courtesy of TESLA, INC.

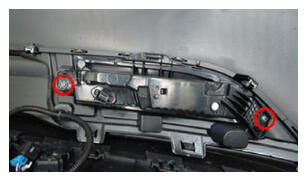

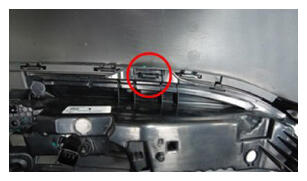

  4. Remove the bolts (x2) and clip that attach the LH rear fascia lamp to the rear fascia.

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • Torx T25 socket
    • Torque Wrench Hexagon - 1060071-00-A (for installation only)
    G16596359Courtesy of TESLA, INC.
    G16596360Courtesy of TESLA, INC.

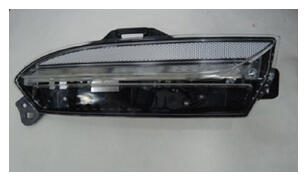

  5. Remove the LH rear fascia lamp assembly.
    G16596361Courtesy of TESLA, INC.
