Rear Bumper Fascia - Fascia Assembly - Rear Upper (Welded) - Remove And Replace: Remove
- Remove the rear fascia assembly. See BUMPER AND FASCIA - REAR BUMPER FASCIA - REAR FASCIA - REMOVE AND INSTALL .
- Remove the rear left BLE from the rear fascia.

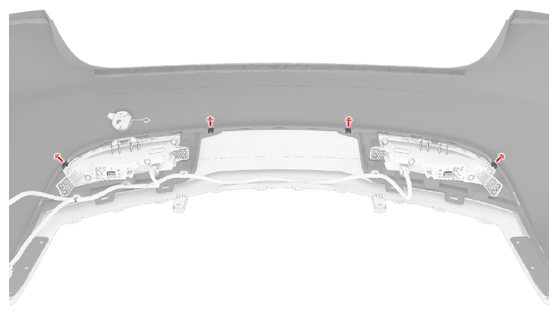

- Remove the bolts (x4) that attach the lower rear fascia to the upper rear fascia.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Cordless Ratchet/Impact Driver
- Remove the LH and RH rear fascia lights. See TAIL LIGHTS - LAMP ASSEMBLY, REAR FASCIA LAMP, LH - REMOVE AND REPLACE .
- Remove the bolts (x2) that attach the rear fascia diffuser to the inside of the rear fascia.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 6 in extension
- Ratchet/torque wrench

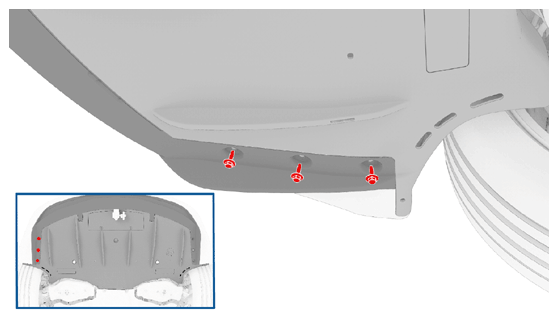

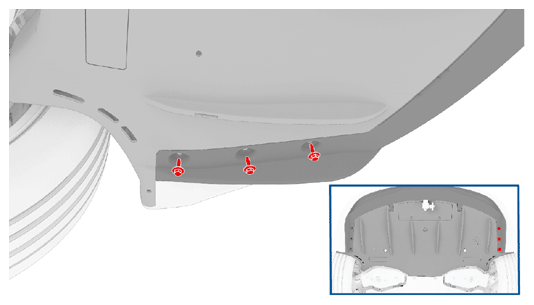

- Remove the bolts (x6) that attach the rear fascia diffuser to the outer edge of the rear fascia.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 6 in extension
- Ratchet/torque wrench
- Release the tabs (x21) that attach the rear upper fascia to the rear fascia assembly, and then remove the rear upper fascia.
