Rear Bumper Fascia - Fascia Assembly - Rear Upper (Welded) - Remove And Replace: Install
- Install the tabs (x21) that attach the rear upper fascia to the rear fascia assembly.
- Install the bolts (x2) that attach the rear fascia diffuser to the inside of the rear fascia.
3 N.m (2.2 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 6 in extension
- Ratchet/torque wrench

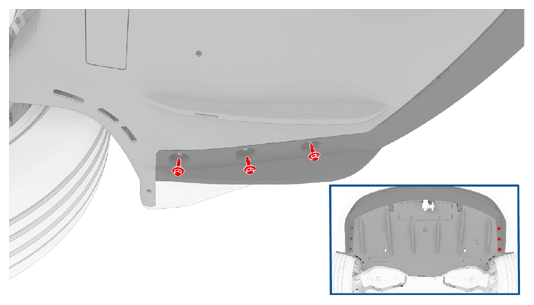

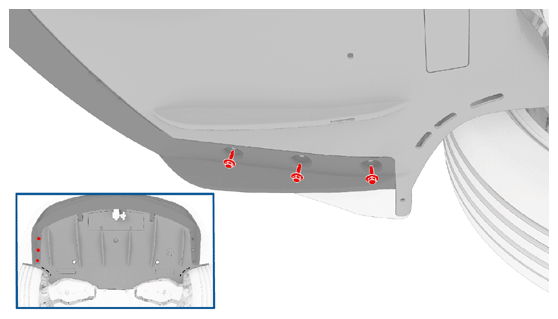

- Install the bolts (x6) that attach the rear fascia diffuser to the outer edge of the rear fascia.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- 6 in extension
- Ratchet/torque wrench
- Install the LH and RH rear fascia lights. See TAIL LIGHTS - LAMP ASSEMBLY, REAR FASCIA LAMP, LH - REMOVE AND REPLACE .

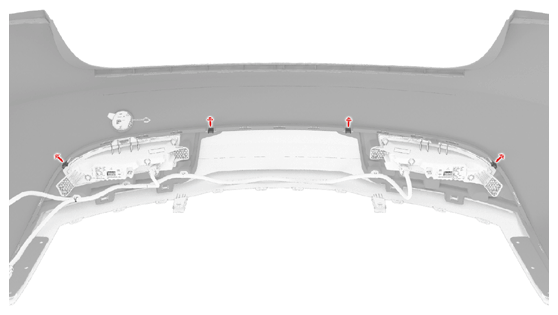

- Install the bolts (x4) that attach the lower rear fascia to the upper rear fascia.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Cordless Ratchet/Impact Driver
- Install the rear left BLE from the rear fascia.
- Install the rear lower fascia. See REAR BUMPER FASCIA - FASCIA - REAR LOWER ASSEMBLY, BASE - REMOVE AND REPLACE .
