Rear Bumper Fascia - Fascia - Rear Lower Assembly, Base - Remove And Replace: Remove

Remove the rear fascia diffuser. See REAR UNDERTRAY AND DIFFUSER - DIFFUSER ASSEMBLY, REAR FASCIA - REMOVE AND REPLACE .
Remove the bolts (x4) that attach the lower rear fascia to the upper rear fascia.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Cordless Ratchet/Impact Driver
Courtesy of TESLA, INC.
Remove the LH and RH rear fascia lamp assemblies. See TAIL LIGHTS - LAMP ASSEMBLY, REAR FASCIA LAMP, LH - REMOVE AND REPLACE .

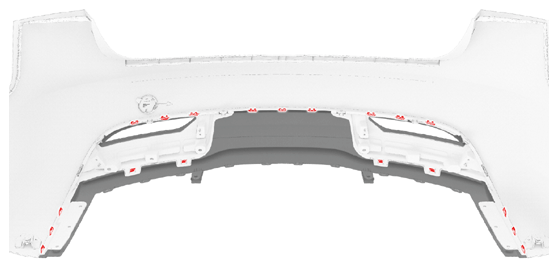

Remove the tabs (x19) that attach the lower fascia to the upper fascia.
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

Courtesy of TESLA, INC.

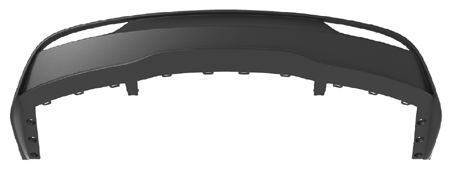

Remove the lower fascia.

Courtesy of TESLA, INC.
