Rear Bumper Fascia - Fascia - Rear Lower Assembly, Base - Remove And Replace: Install

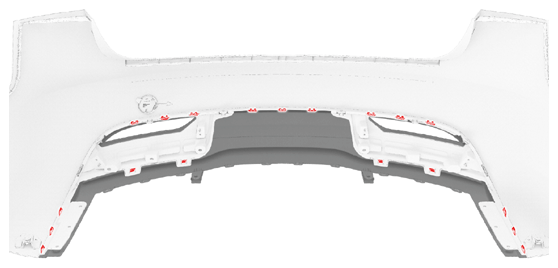

Install the tabs (x19) that attach the lower fascia to the upper fascia from either side.

Courtesy of TESLA, INC.
Install the LH and RH rear fascia lamp assemblies. See TAIL LIGHTS - LAMP ASSEMBLY, REAR FASCIA LAMP, LH - REMOVE AND REPLACE .

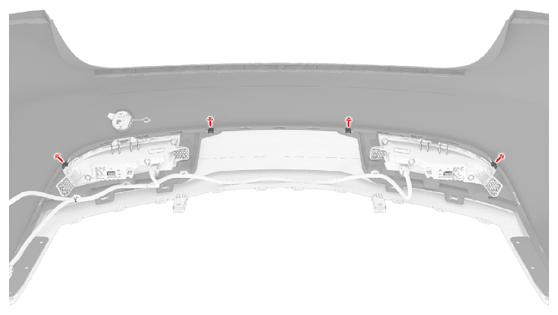

Install the bolts (x4) that attach the lower rear fascia to the upper rear fascia.
3 N.m (2.2 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Cordless Ratchet/Impact Driver
Courtesy of TESLA, INC.
Install the rear fascia diffuser. See REAR UNDERTRAY AND DIFFUSER - DIFFUSER ASSEMBLY, REAR FASCIA - REMOVE AND REPLACE .
