Front Bumper Fascia - Grille Lower - Front Fascia - Remove And Replace: Remove
- Remove the front fascia assembly. See FRONT BUMPER FASCIA - FASCIA ASSEMBLY - FRONT - REMOVE AND REPLACE .NOTE: It is not necessary to remove the front fascia harness, valance and grille from the front fascia assembly.
- Use a clip prytool to release the clips (x5) that attach the fascia harness to the grille.

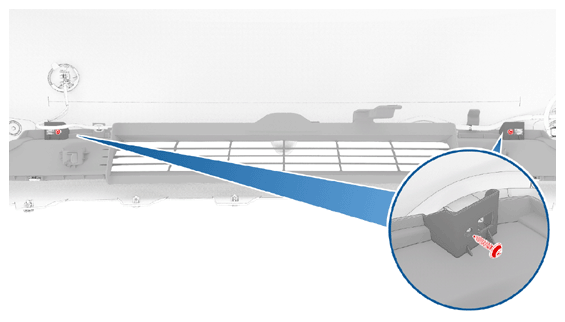

- Remove the bolts (x2) that attach the grille to the front fascia.WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.multimedia:A supplement to the article is available.
Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 3 in extension
- 15 mm socket
- Cordless Ratchet/Impact Driver

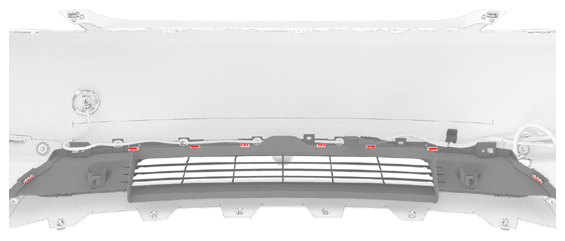

- Remove the clips (x16) that attach the grille to the front fascia.
