Front Bumper Fascia - Grille Lower - Front Fascia - Remove And Replace: Install

Position the grille onto the front fascia.

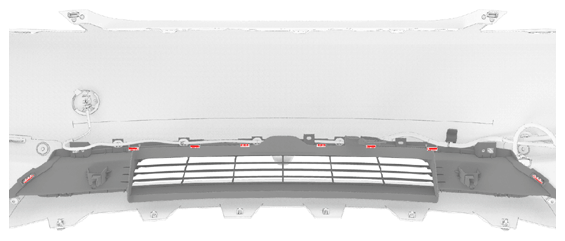

Install the clips (x16) that attach the grille to the front fascia.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

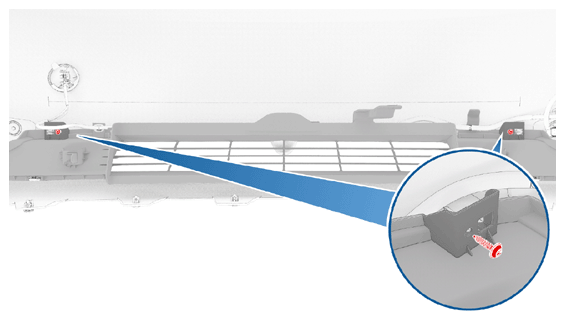

Install the bolts (x2) that attach the grille to the front fascia.
1.8 N.m (1.3 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Ratchet/torque wrench
- 3 in extension
- 15 mm socket
- Cordless Ratchet/Impact Driver
Courtesy of TESLA, INC.

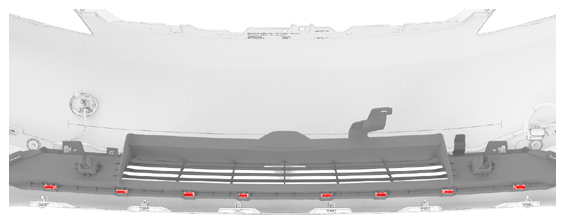

Install the clips (x5) that attach the fascia harness to the grille.

Courtesy of TESLA, INC.
Install the front fascia assembly. See FRONT BUMPER FASCIA - FASCIA ASSEMBLY - FRONT - REMOVE AND REPLACE .
