Front Bumper Fascia - Cover - Tow Hook Front Fascia - Remove And Replace: Remove

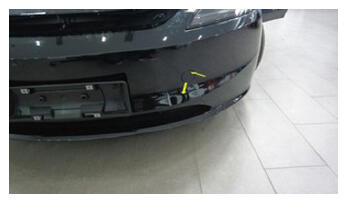

  1. Place two thumbs at the 1 and 2 o'clock positions, resting your knuckles on the bumper fascia surface to support your hand position. Use both thumbs to apply force on the outer edge of the cover.
    G16587318Courtesy of TESLA, INC.

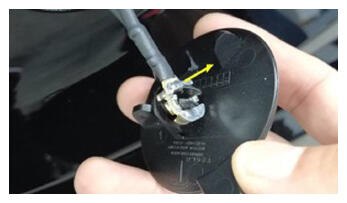

  2. Remove the 12V jumper wires from the front tow hook cover, and then remove the cover from the vehicle.
    NOTE: Gently squeeze the retaining tabs together to remove the wires.
    G16587319Courtesy of TESLA, INC.

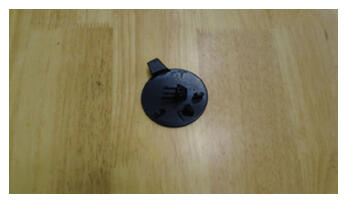

    G16587320Courtesy of TESLA, INC.
