Front Bumper Fascia - Cover - Tow Hook Front Fascia - Remove And Replace: Install

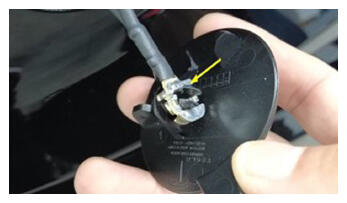

  1. Connect the 12V jumper wires to the front tow hook cover.
    NOTE: Ensure both wire terminals are fully seated on the retaining tabs.
    G16587321Courtesy of TESLA, INC.

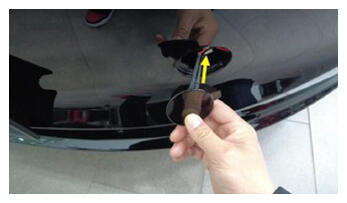

  2. Insert location tab between the 1 and 2 o'clock position and rotate the bottom snap fit tabs into the slots in the fascia. Once the tabs are located, push on the outer edge to snap the cover on.
    G16587322Courtesy of TESLA, INC.
