Front Bumper Fascia - Bracket - Fascia Side To Fender RH - Remove And Replace: Install

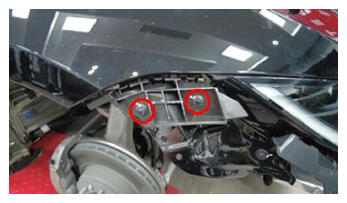

Position the RH fascia side to fender bracket onto the RH front fender.
Install the nuts (x2) that attach the RH fascia side to fender bracket to the RH front fender.
4 N.m (2.9 lbs-ft)

WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
Courtesy of TESLA, INC.

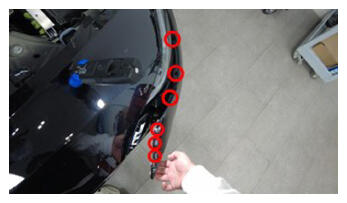

Install the clips (x6) that attach the front fascia to the front fender.

Courtesy of TESLA, INC.

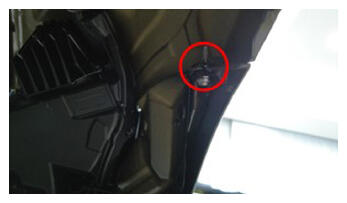

Install the bolt that attaches the front fascia to the RH front fender.
4 N.m (2.9 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless hex driver
- 8 mm magnetic deep
- 6 in nutsetter
- Ratchet/torque wrench
Courtesy of TESLA, INC.

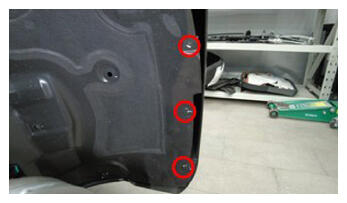

Install the clips (x3) that attach the RH front wheel arch liner to the front fascia.

Courtesy of TESLA, INC.
Press the brake pedal to turn on the drive rail.
Set the steering wheel straight ahead.
Raise the H front window and raise the LH front door.
