Front Bumper Fascia - Bracket - Fascia Side To Fender LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Press the brake pedal to turn on the drive rail.
- Turn the steering wheel all the way to the right.

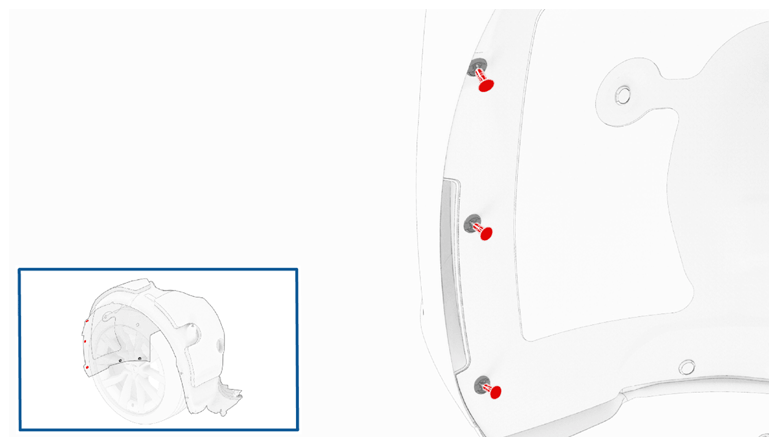

- Remove the clips (x3) that attach the LH front wheel arch liner to the front fascia, and then move the liner aside for access.

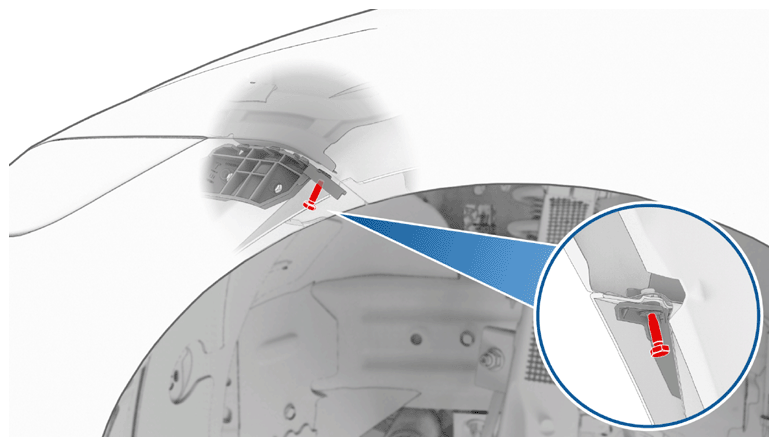

- Remove the bolt that attaches the front fascia to the LH front fender.
Tip: Use of the following tool(s) is recommended:
- Cordless hex driver
- 8 mm magnetic deep
- 6 in nutsetter
- Use a plastic trim tool to release the clips (x6) that attach the front fascia to the front fender.
- Carefully pull aside the corner of the front fascia away from the front fender.

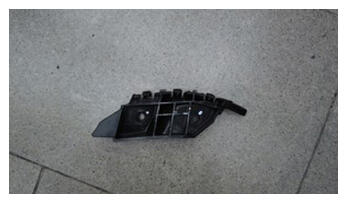

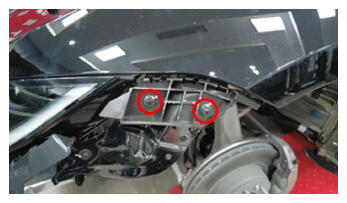

- Remove the nuts (x2) that attach the LH fascia side to fender bracket to the LH front fender, and then remove the bracket from the vehicle.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
