Front Bumper Fascia - Bracket - Fascia Side To Fender LH - Remove And Replace: Install

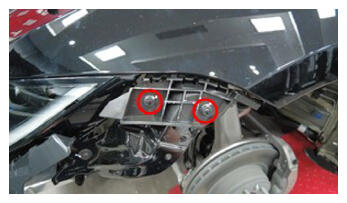

Position the LH fascia side to fender bracket onto the LH front fender.
Install the nuts (x2) that attach the LH fascia side to fender bracket to the LH front fender.
4 N.m (2.9 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Cordless Ratchet/Impact Driver
- Ratchet/torque wrench
WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

multimedia:A supplement to the article is available.

Courtesy of TESLA, INC.

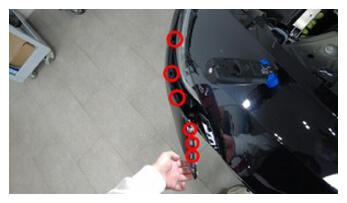

Install the clips (x6) that attach the front fascia to the front fender.

Courtesy of TESLA, INC.

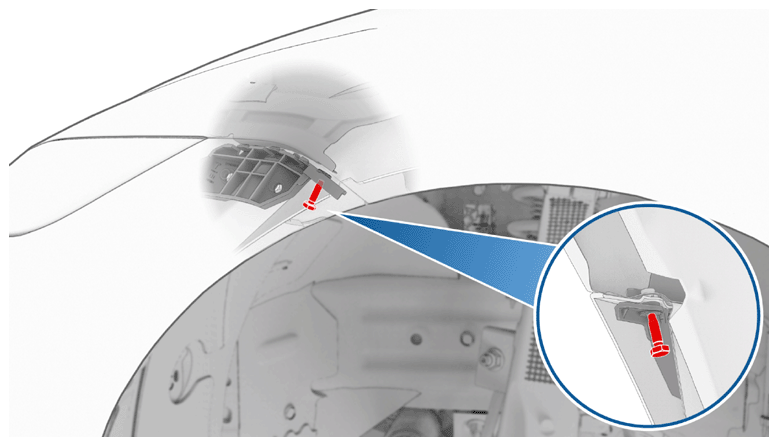

Install the bolt that attaches the front fascia to the LH front fender.
2.5 N.m (1.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Cordless hex driver
- 8 mm magnetic deep
- 6 in nutsetter
Courtesy of TESLA, INC.

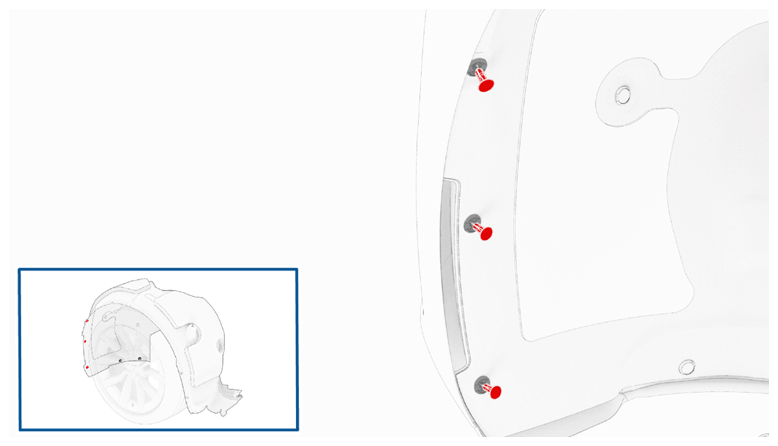

Install the clips (x3) that attach the LH front wheel arch liner to the front fascia.

Courtesy of TESLA, INC.
Press the brake pedal to turn on the drive rail.
Set the steering wheel straight ahead.
Raise the LH front window and raise the LH front door.
