Wheel Arch Liners - Rear Wheel Liner, LH - Remove And Replace: Remove

  1. Raise and support the vehicle. See RAISE VEHICLE - 2 STANDS .
  2. Remove the LH rear wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
  3. Release the push clips (x8) and fan clips (x7) that attach the LH rear wheel arch liner to the vehicle, and remove the liner from the vehicle.

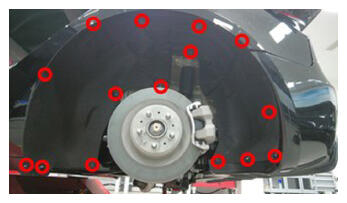

    G16588300Courtesy of TESLA, INC.

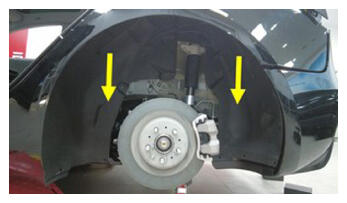

    G16588301Courtesy of TESLA, INC.

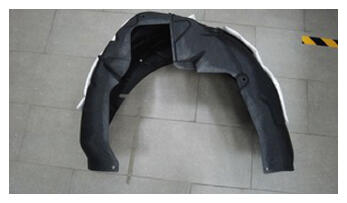

    G16588302Courtesy of TESLA, INC.
