Wheel Arch Liners - Rear Wheel Liner, LH - Remove And Replace: Install

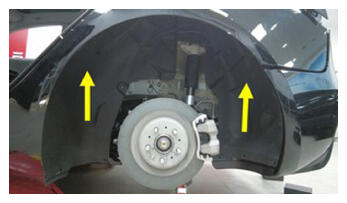

  1. Position the LH rear wheel arch liner into the vehicle.
    G16588303Courtesy of TESLA, INC.

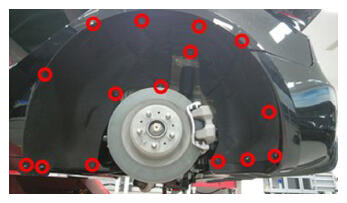

  2. Install the push clips (x8) and fan clips (x7) that attach the LH rear wheel arch liner to the vehicle.
    G16588304Courtesy of TESLA, INC.
  3. Install the LH rear wheel. See WHEEL ASSEMBLY - REMOVE AND INSTALL .
  4. Remove the vehicle from the lift.
