Rear Undertray And Diffuser - LH Rear Suspension Cover - Remove And Replace: Install

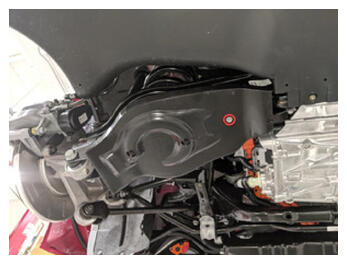

- Install the bolt and tabs (x2) that attaches the rear suspension cover to the LH lower rear control arm assembly.
6 N.m (4.4 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm deep socket
- Ratchet/torque wrench
- Remove the vehicle from the lift. See RAISE VEHICLE - 2 STANDS .
