Front Door Hinges And Fittings - Front Lower Left Hinge - Remove And Replace: Remove

Open the LH front door and lower the LH front window.

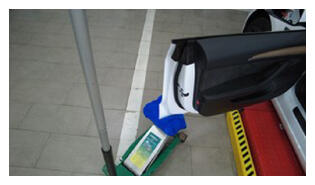

Use a jack to support the LH front door from the bottom.
NOTE: Make sure to use soft material to protect the door paint.

Courtesy of TESLA, INC.

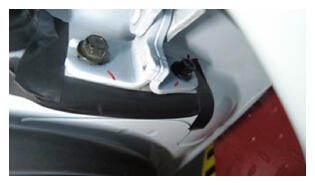

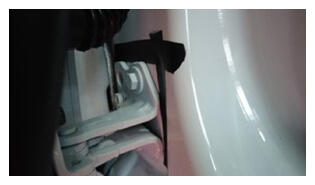

Apply masking tape to the area surrounding the LH front door lower hinge on the body and door to aid in alignment during installation.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

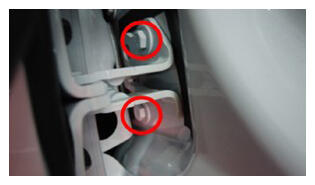

Remove the bolts (x2) that attach the LH front lower door hinge to the door.
Tip: Use of the following tool(s) is recommended:
- 10 mm combination wrench
Courtesy of TESLA, INC.

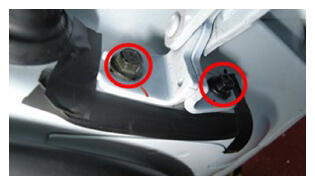

Remove the bolts (x2) that attach the LH front lower door hinge to the body.
Tip: Use of the following tool(s) is recommended:
- 13 mm combination wrench
Courtesy of TESLA, INC.

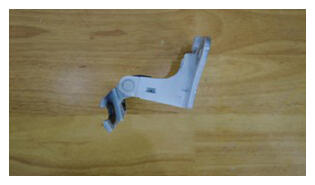

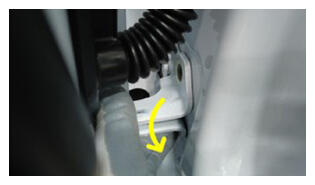

Lift up on the door slightly, and then rotate the LH lower front door hinge and pull it out to remove it.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
