Carbon Fiber Spoiler - Rear - Retrofit Using Jig: Procedure

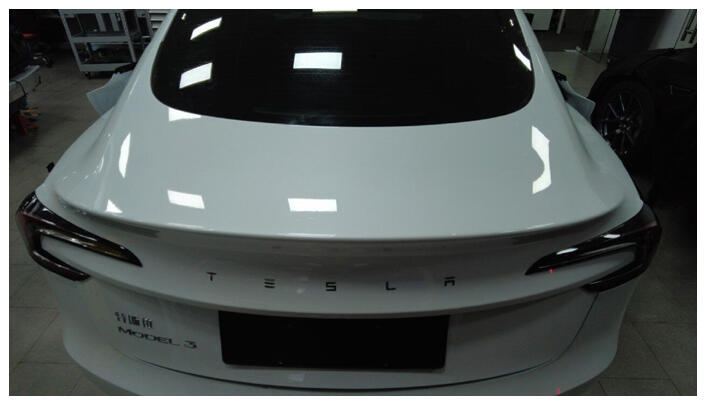

  1. Clean the rear carbon fiber spoiler installation surface with Isopropyl Alcohol (IPA) wipes, and allow it to dry before continuing.
    NOTE: Clean any moisture or contaminates that might be present from rain or vehicle washing, otherwise this might result in poor adhesion of the rear spoiler.
    NOTE: If the trunk surface requires any paint correction, request assistance from the body shop or shop detailer before the installation of the rear spoiler.
    NOTE: It is recommended to perform this procedure indoors. Acceptable ambient and part temperature for installation is 15-43 degrees Celsius (60-110 degrees Fahrenheit) for proper adhesion.
    G16587884Courtesy of TESLA, INC.

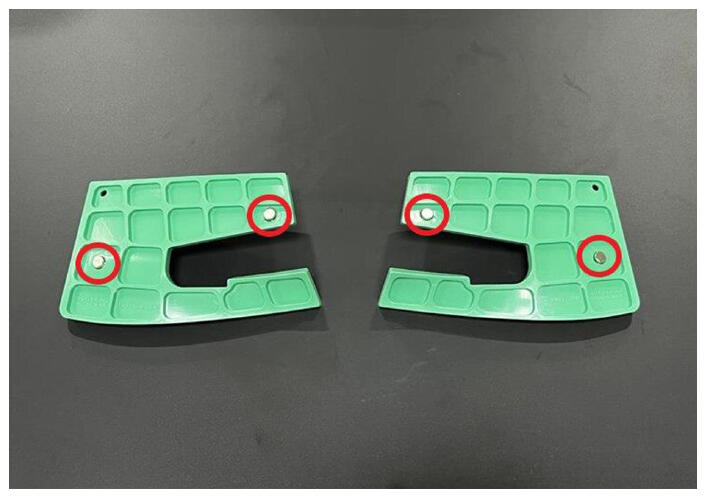

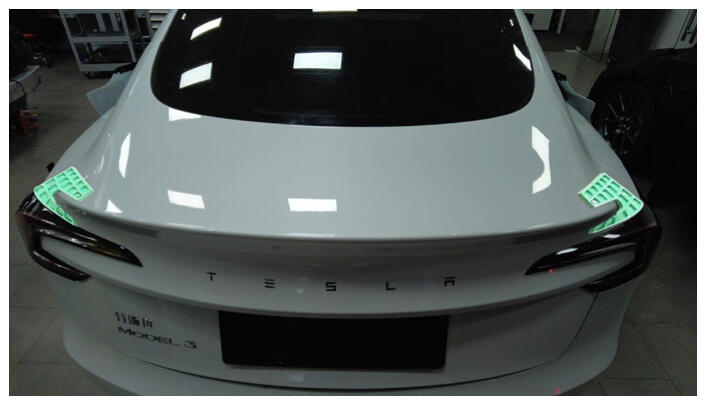

  2. Position the rear carbon fiber spoiler jigs (x2) on the LH and RH edges of the trunk lid.
    NOTE: The spoiler jigs are secured on the trunk lid with magnets located on the jig and trunk lid mating surface.

    Tip: Use of the following tool(s) is recommended:

    • Spoiler Jig, M3 - 1921904-00-B
    G16587885Courtesy of TESLA, INC.
    G16587886Courtesy of TESLA, INC.

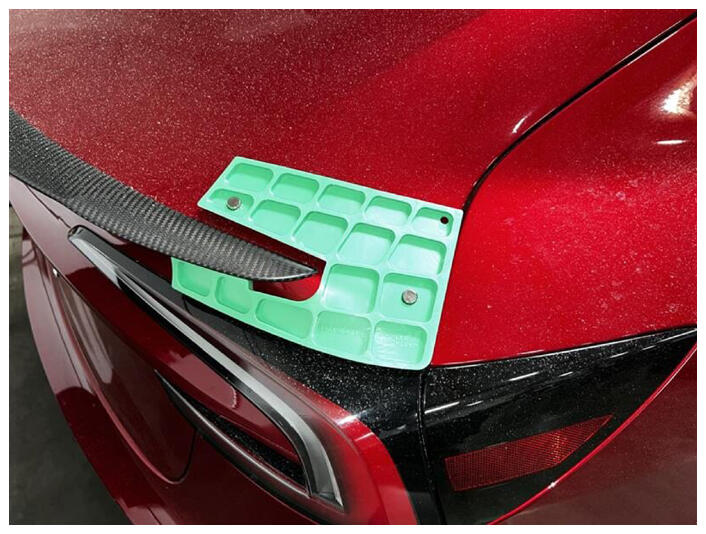

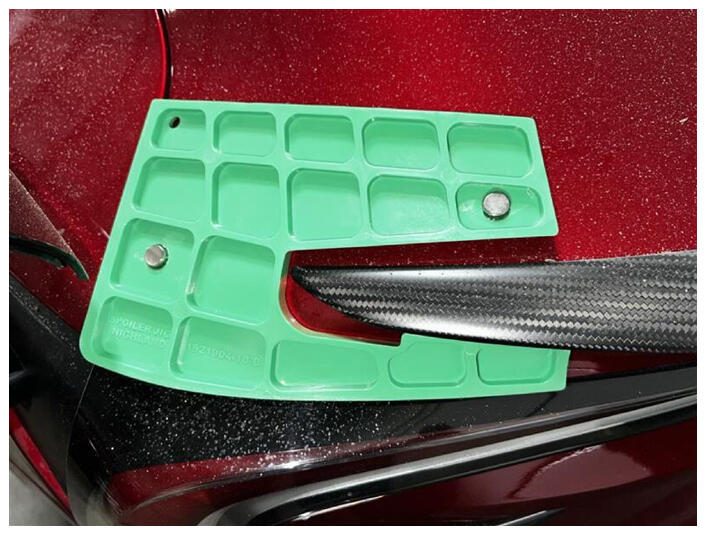

  3. Dry fit the rear carbon fiber spoiler between the spoiler jigs (x2).
    G16587887Courtesy of TESLA, INC.
    G16587888Courtesy of TESLA, INC.
    G16587889Courtesy of TESLA, INC.

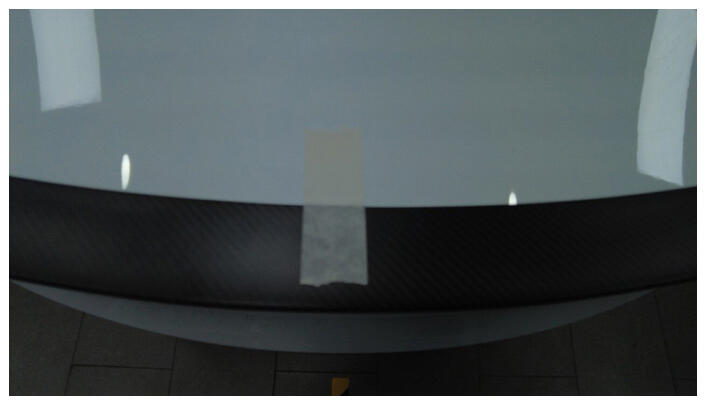

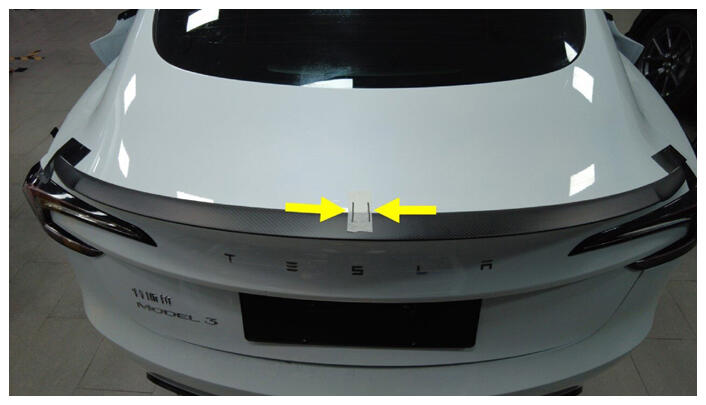

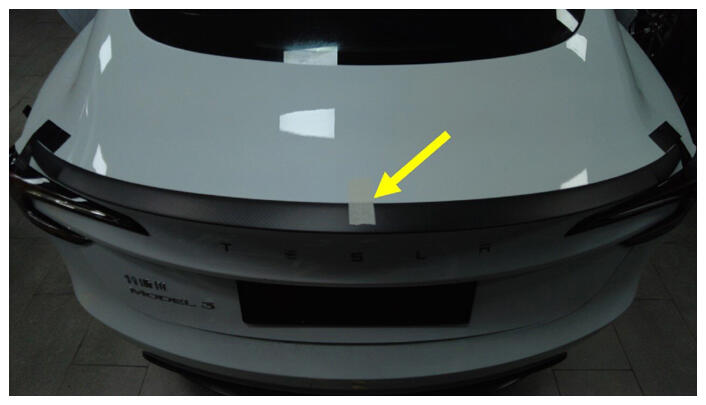

  4. Apply painter's tape to the center of the rear carbon fiber spoiler and the trunk lid, and then mark approximately 25 mm spacing between the centering lines on the tape using a marker.

    Tip: Use of the following tool(s) is recommended:

    • Marker
    • Painter's Tape - 1042541-00-A
    G16587890Courtesy of TESLA, INC.
    G16587891Courtesy of TESLA, INC.
    G16587892Courtesy of TESLA, INC.

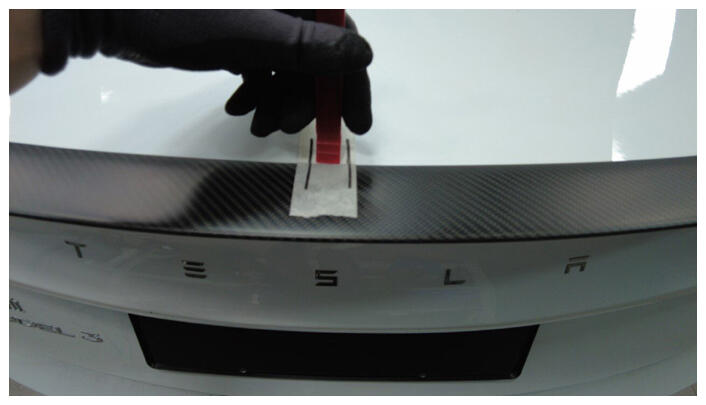

  5. Cut the painter's tape to allow removal of the rear carbon fiber spoiler.
    CAUTION: Do not damage the surfaces of the trunk lid or rear spoiler while using a plastic trim tool.

    Tip: Use of the following tool(s) is recommended:

    • Plastic Trim Tool - 1115421-00-B
    G16587893Courtesy of TESLA, INC.

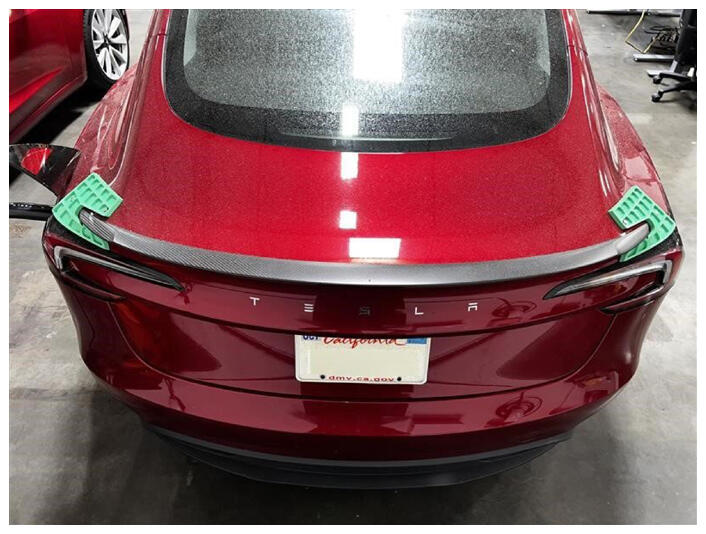

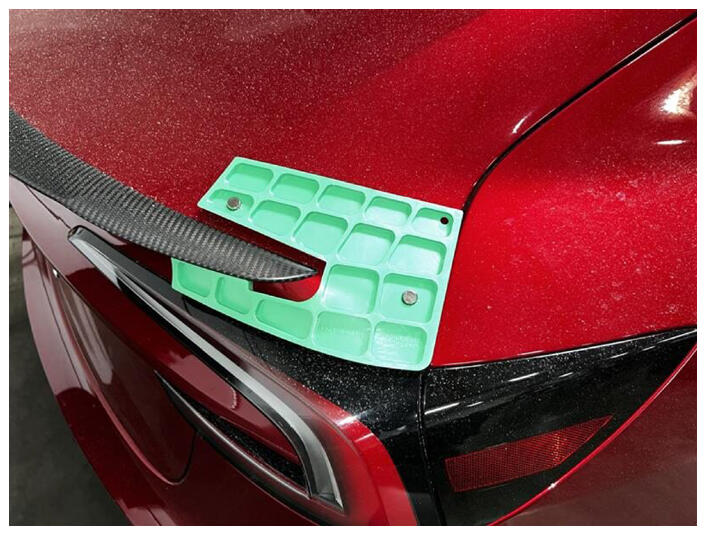

  6. Remove the rear carbon fiber spoiler jigs (x2) from the trunk lid.
    G16587894Courtesy of TESLA, INC.
    G16587895Courtesy of TESLA, INC.
    G16587896Courtesy of TESLA, INC.
    G16587897Courtesy of TESLA, INC.
  7. Remove the rear carbon fiber spoiler from the trunk lid.

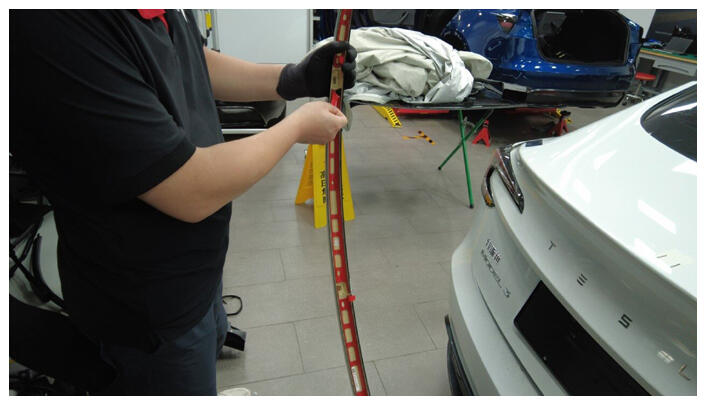

  8. Remove the adhesive backing from the rear carbon fiber spoiler.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip 90 degree Tip 6 in - 1115191-00-A
    G16587898Courtesy of TESLA, INC.

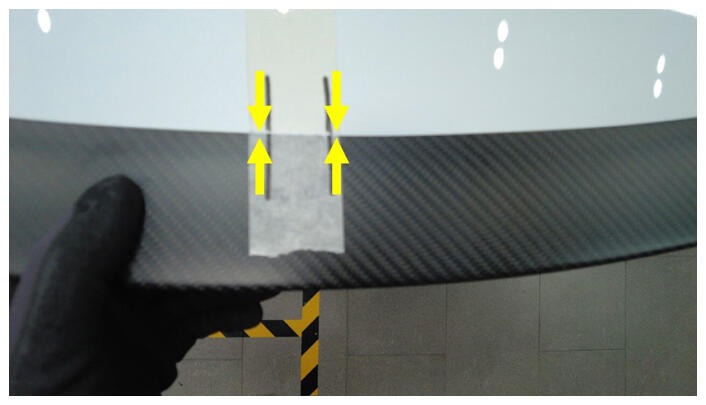

  9. Align the two marks on the painter's tape on the rear carbon fiber spoiler with the two marks on the tape on the trunk lid. Hold the corners of the rear spoiler away from the trunk lid to install the center section of the spoiler first.
    G16587899Courtesy of TESLA, INC.

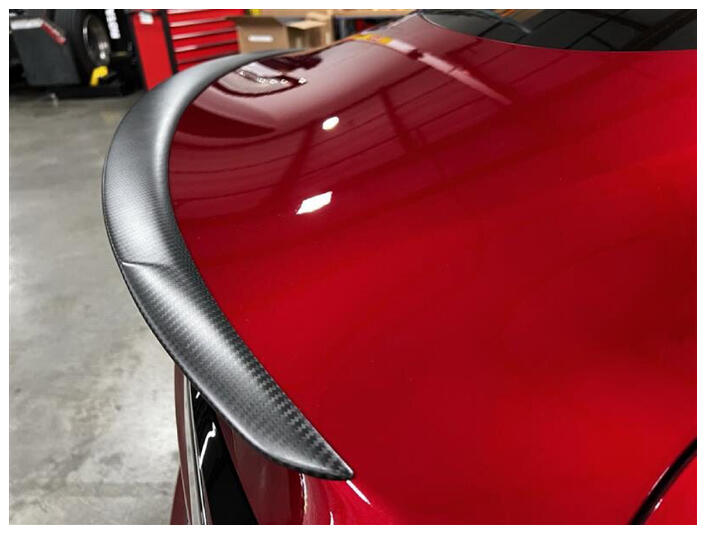

  10. Secure each end of the rear carbon fiber spoiler to the trunk lid.
    G16587900Courtesy of TESLA, INC.
    G16587901Courtesy of TESLA, INC.

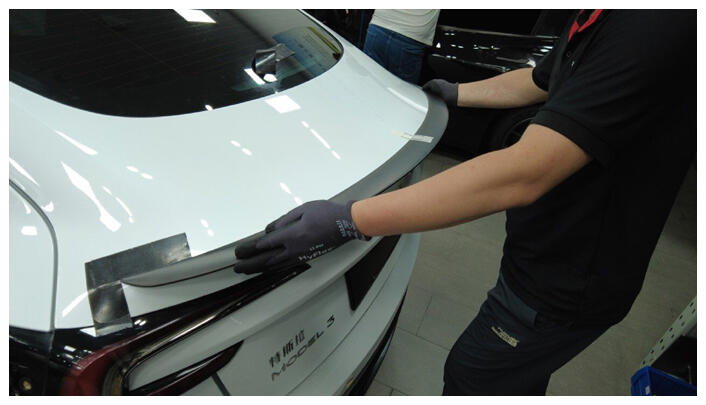

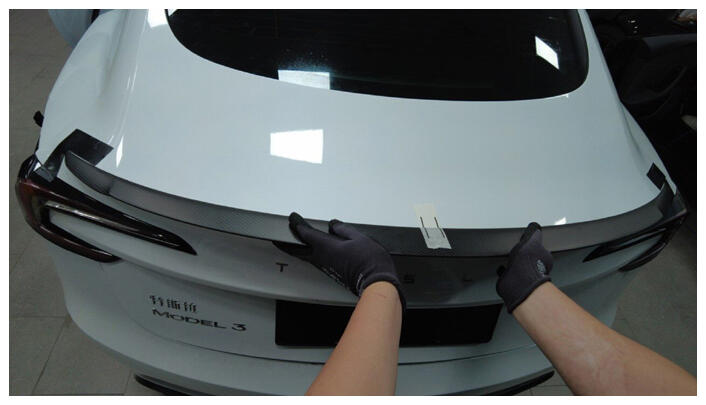

  11. Perform the wet out of the adhesive: Starting at the center, firmly push downward and in towards the front of the vehicle, and then continue outwards towards both ends of the spoiler.
    G16587902Courtesy of TESLA, INC.
    G16587903Courtesy of TESLA, INC.

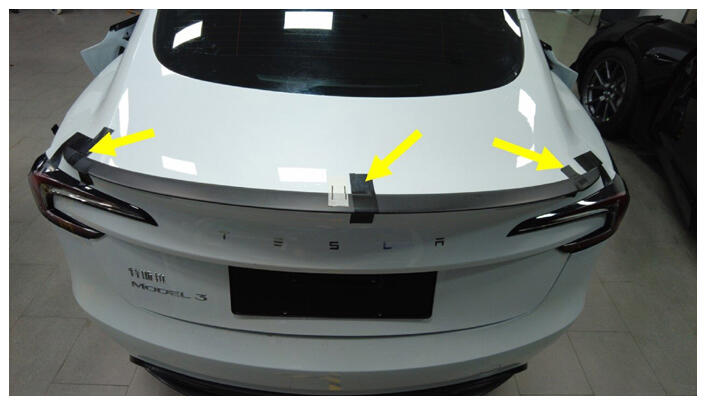

  12. Apply painter's tape as required to secure the rear carbon fiber spoiler to the trunk lid.
    G16587904Courtesy of TESLA, INC.

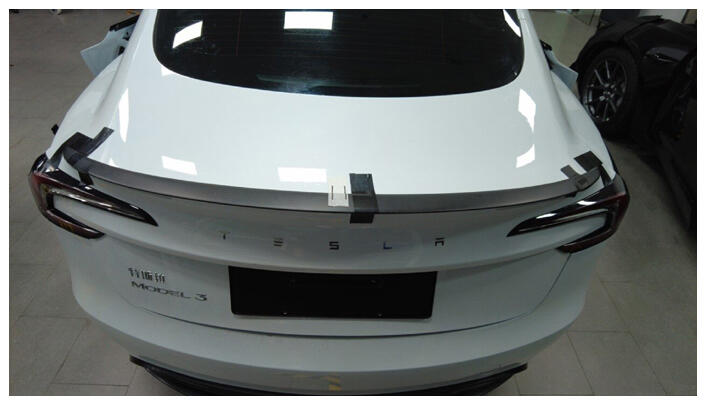

  13. Remove the painter's tape from the vehicle, and then clean the work area.

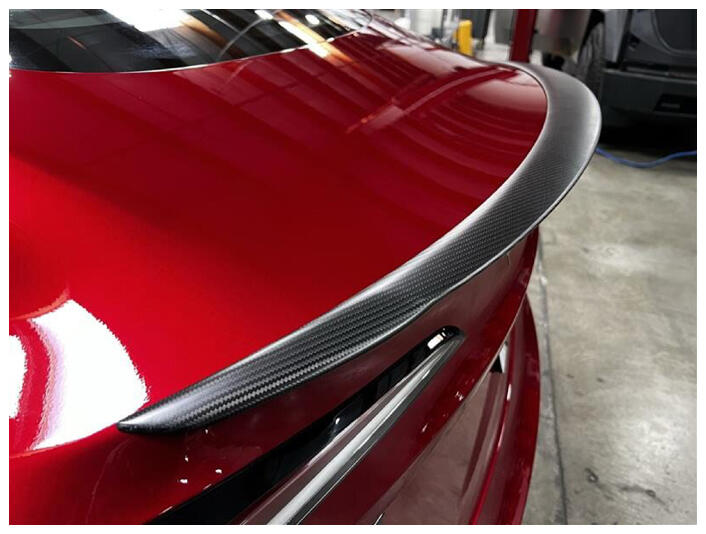

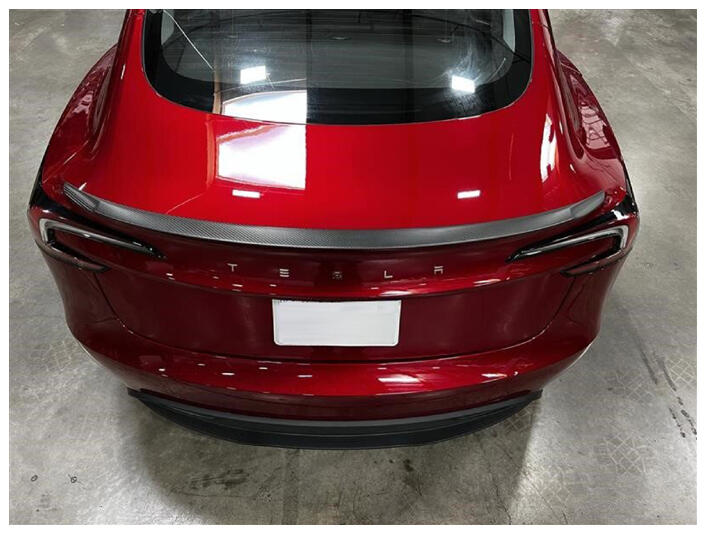

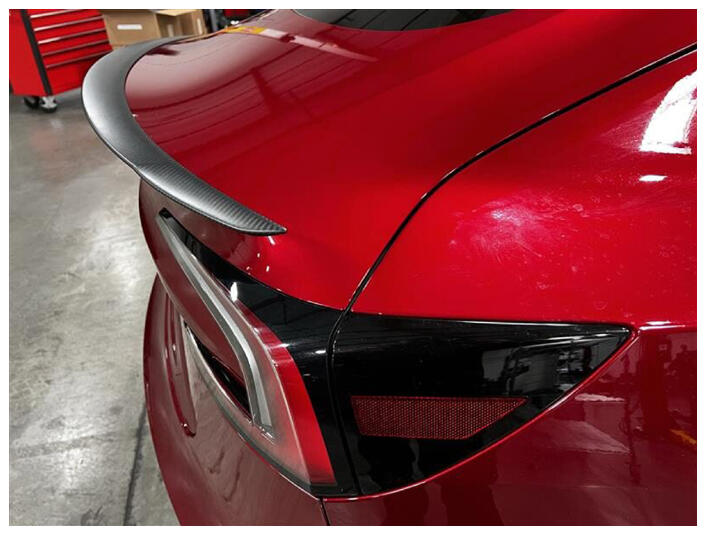

    NOTE: Make sure that the rear carbon fiber spoiler corners are laid flat to the trunk lid and symmetrical.
    G16587905Courtesy of TESLA, INC.
    G16587906Courtesy of TESLA, INC.
    G16587907Courtesy of TESLA, INC.
    G16587908Courtesy of TESLA, INC.
  14. Connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
    NOTE: For Tesla employees attempting to access the internal Toolbox application, please visit https://toolbox.tesla.com while connected to Tesla's network as required.
    NOTE: For independent repairers and Tesla approved body shops, please visit https://toolbox.tesla.com to submit external Toolbox application access requests as required.

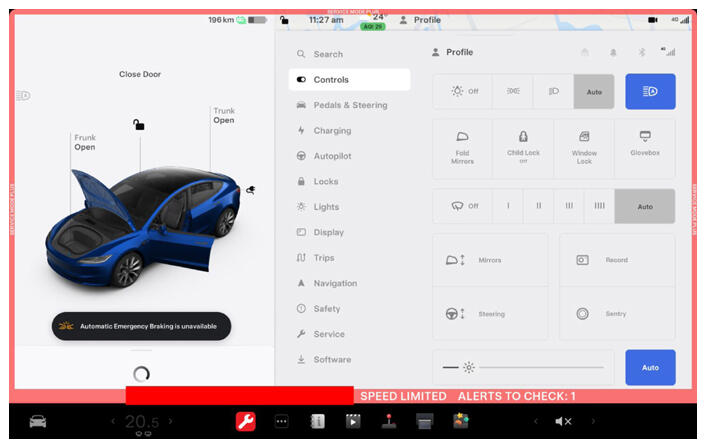

  15. Upon successful connection to Toolbox 3, Service Mode Plus will be enabled and the "Service Mode Plus" watermark will appear on the touchscreen.
    G16587909Courtesy of TESLA, INC.

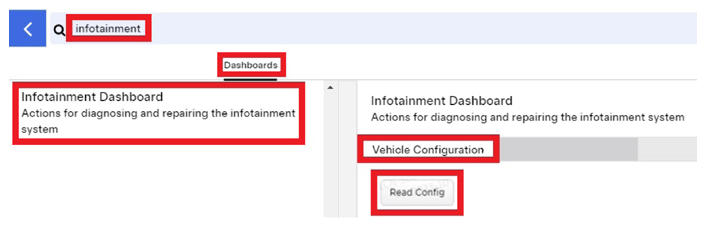

  16. Click the Dashboards  tab, search for "infotainment", click Infotainment Dashboard  > Vehicle Configuration  , and then click Read Config  .
    G16587910Courtesy of TESLA, INC.
  17. Click Run  and allow the routine to complete. Click X  at the top right of the window to exit once the routine is complete.
    G16587911Courtesy of TESLA, INC.
  18. Scroll down to "spoilerType" and confirm the configuration is "Not Installed".
    G16587912Courtesy of TESLA, INC.
  19. Select "Passive" from the drop down menu.
    G16587913Courtesy of TESLA, INC.

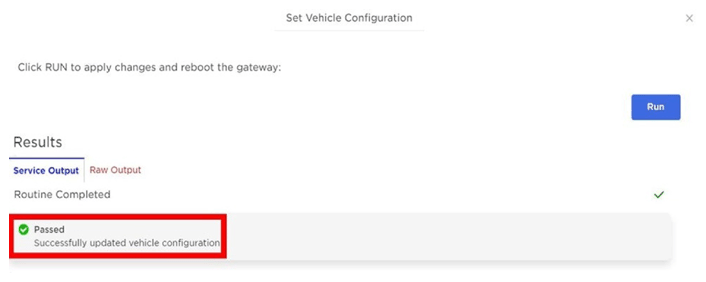

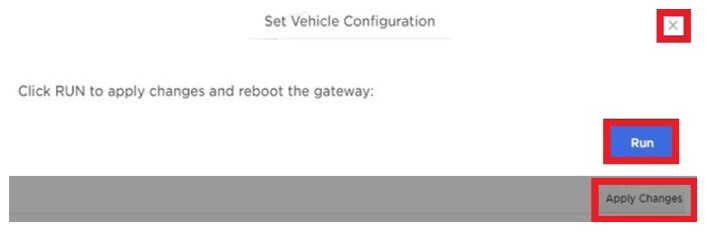

  20. Click Apply Changes  and Run  to save the updated spoiler configuration. Click X  at the top right of the window to exit once the routine is complete.
    G16587914Courtesy of TESLA, INC.
    G16587915Courtesy of TESLA, INC.

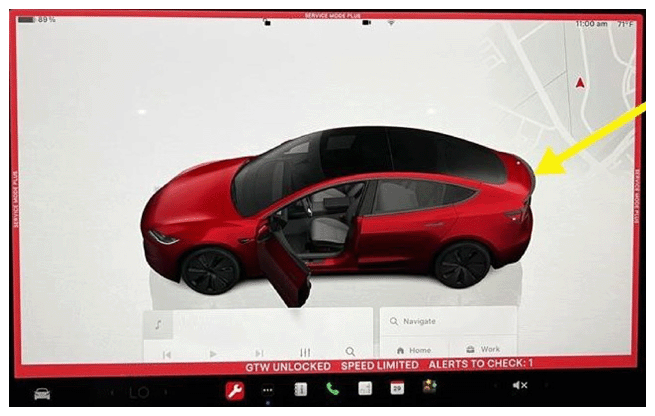

  21. Verify the spoiler configuration change by checking that the vehicle avatar displays the rear carbon fiber spoiler on the trunk lid.
    G16587916Courtesy of TESLA, INC.
  22. Disconnect the laptop from the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
