Front Energy Absorber - Assembly Bumper Beam - Remove And Replace: Install
- Position the front bumper beam foam onto the front bumper beam.
- Use a dead blow hammer to install the front bumper beam to the LH and RH crush cans.

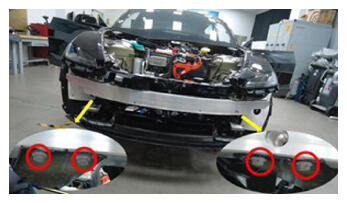

- Install the bolts (x4) that attach the front bumper beam to the LH and RH crush cans.
75 N.m (55.3 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 15 mm socket
- Flex head ratchet/flex head torque wrench

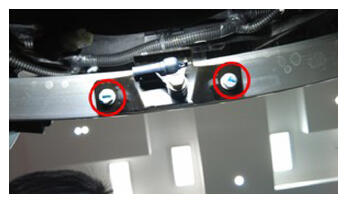

- Install the bolts (x2) that attach the center impact accelerometer sensor bracket to the front bumper beam.
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 10 mm socket
- Ratchet/torque wrench (for installation only)

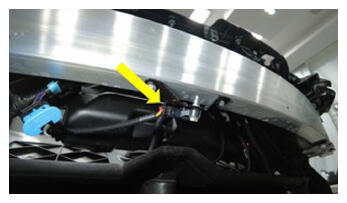

- Connect the center impact accelerometer sensor.
- Install the front bumper beam foam. See FRONT ENERGY ABSORBER - BUMPER BEAM FOAM - REMOVE AND REPLACE .
- Install the front fascia assembly. See FRONT BUMPER FASCIA - FASCIA ASSEMBLY - FRONT - REMOVE AND REPLACE .
