Rear Door Seals - Seal, Rear, Door, Secondary, LH - Remove And Replace: Remove

Open the LH rear door.

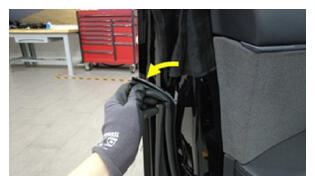

Release the LH rear glass run seal clips (x4) to fully access the LH rear door secondary seal.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

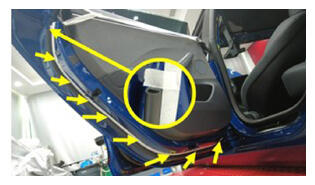

Use narrow-width tape to carefully mark the location of the secondary seal around the door.
CAUTION: Make sure that the edge of the tape accurately follows the edge of the seal.

Courtesy of TESLA, INC.

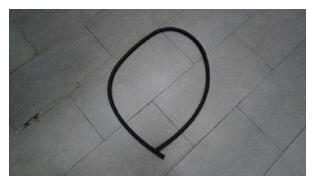

Slowly peel the length of the secondary seal from the perimeter of the rear door.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Clean any remaining adhesive or residue from the rear door.
