Rear Door Seals - Seal, Rear, Door, Secondary, LH - Remove And Replace: Install

Use IPA wipes to clean the LH rear door secondary seal installation path.
NOTE: Allow 1 minute of dry time.
Peel a short section of seal backing and insert the end of the seal into the rear of the glass run seal.
NOTE: Make sure that the open edge of the seal is facing the inside of the door.

NOTE: Make sure that the drain holes of the seal is at the bottom of the door.

NOTE: Make sure the rear end of the secondary door seal is installed no deeper than 25 mm into the glass run seal.

Courtesy of TESLA, INC.
Peel the seal backing and carefully position the edge of the seal to the edge of the marking tape while working around the rear door.
NOTE: Do not stretch the seal as it is applied to the door.
Use a seam roller to attach the seal to the LH rear door.

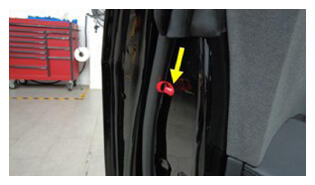

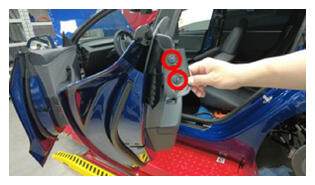

Install the LH rear glass run seal clips (x4) to fully access the LH rear door secondary seal.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove the marking tape from the LH rear door.
Close the LH rear door.
