Body Side Seals - Primary Seal, Rear Door, LH - Remove And Replace: Remove

  1. Remove the LH B-pillar applique. See EXTERIOR TRIM FITTINGS - LHD - ASSEMBLY B-PILLAR APPLIQUE LH - REMOVE AND REPLACE .
  2. Release the clip that attaches the LH primary rear side body seal to the upper B-pillar.

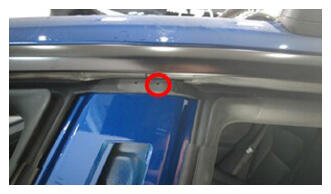

    G16588229Courtesy of TESLA, INC.

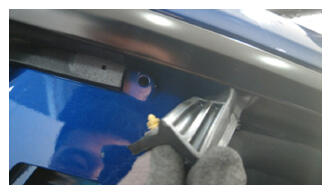

    G16588230Courtesy of TESLA, INC.
  3. Pull on the LH primary rear side body seal to remove it from the vehicle.

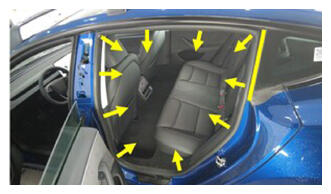

    G16588231Courtesy of TESLA, INC.

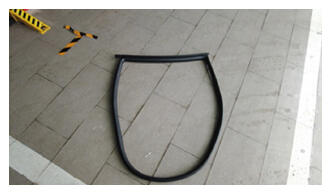

    G16588232Courtesy of TESLA, INC.
