Body Side Seals - Inner Belt Seal, Rear Door, LH - Remove And Replace: Remove

  1. Remove the LH rear door puddle light. See INTERIOR TRIM - DOOR TRIM - REAR DOOR TRIM PAD - PUDDLE LAMP - REMOVE AND REPLACE .
  2. Remove the LH rear door trim panel. See INTERIOR TRIM - DOOR TRIM - REAR DOOR TRIM PAD - DOOR TRIM ASSEMBLY - LH - REMOVE AND REPLACE .

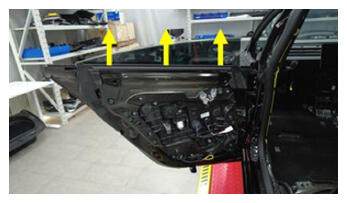

  3. Release the clips (x6) that attach the rear and front of the inner belt seal to the rear door, and then pull up to release the inner belt seal.

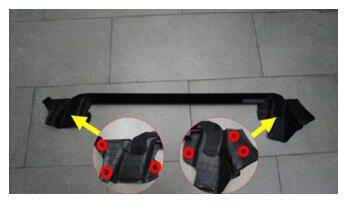

    NOTE: Remove the clips that remain in the door, and then install the clips into the rear and front of the inner belt seal.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16588213Courtesy of TESLA, INC.
    G16588214Courtesy of TESLA, INC.
