Body Side Seals - Inner Belt Seal, Front Door, LH - Remove And Replace: Install

  1. Press the LH front door inner belt seal downwards into the LH front door.

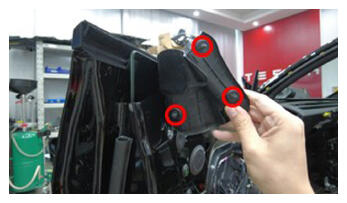

  2. Install the clips (x3) that attach the inner belt seal to the LH front door.
    G16588210Courtesy of TESLA, INC.
  3. Install the LH front door puddle light. See INTERIOR TRIM - DOOR TRIM - FRONT DOOR TRIM PAD - PUDDLE LAMP - REMOVE AND REPLACE .
  4. Install the LH front door trim panel. See INTERIOR TRIM - DOOR TRIM - FRONT DOOR TRIM PAD - DOOR TRIM ASSEMBLY - LH - REMOVE AND REPLACE .
  5. Install the LH front door reflector. See INTERIOR TRIM - DOOR TRIM - FRONT DOOR TRIM PAD - DOOR REFLECTOR - REMOVE AND REPLACE .
  6. Install the LH front door tweeter. See FRONT DOOR TRIM PAD - DOOR TRIM, TWEETER ASSEMBLY, FRONT LH - REMOVE AND REPLACE .
