Trunk Handle and Emergency Release - Liftgate Handle Assembly - Remove And Replace: Remove
- Remove the trunk lid trim. See TRUNK INTERIOR - LOWER LIFTGATE, ASSEMBLY - REMOVE AND REPLACE
.
- Use masking tape to mark the location of the trunk striker.

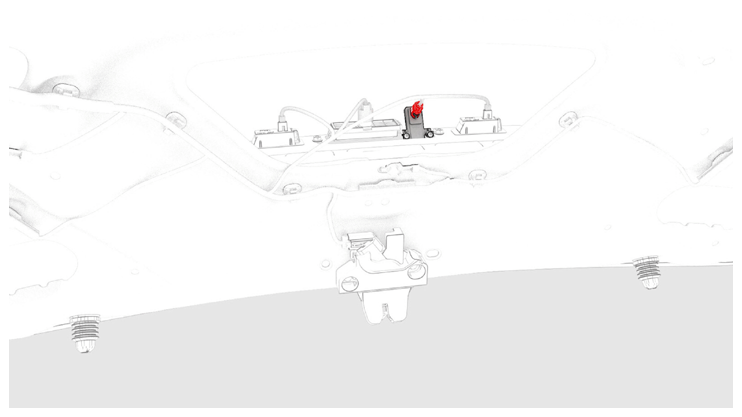

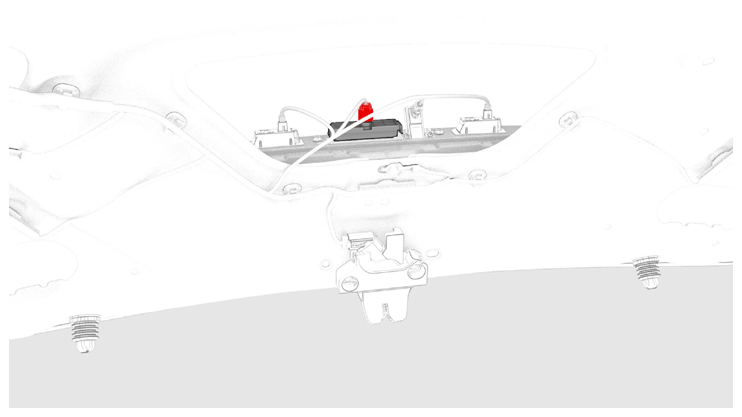

- Disconnect the electrical connectors from the trunk exterior release switch and the rear facing camera.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

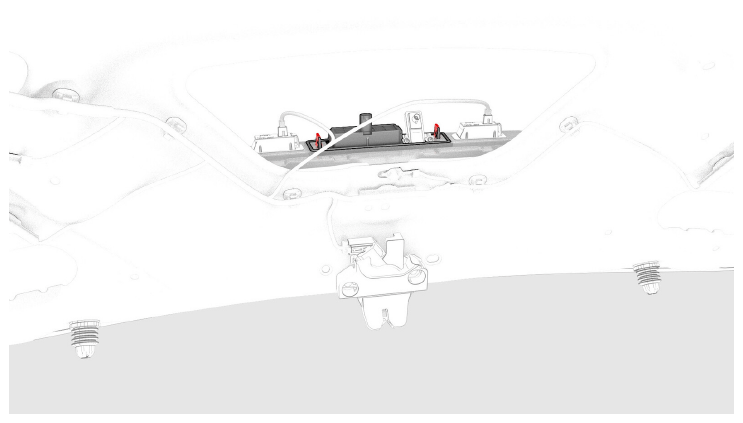

- Release the clips that attach the trunk exterior release switch to the liftgate.
 Courtesy of TESLA, INC.
|
- Remove the switch from the vehicle.
 Courtesy of TESLA, INC.
|
