Rear Door Latch and Striker - Door Latch, Rear LH, Base, T1 - Remove And Replace: Install

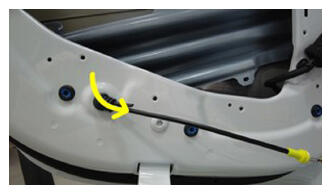

- Feed the latch cable through the opening, and then install the grommet.
- Feed the LH rear door latch through the LH rear door, and then install the latch cable grommet.

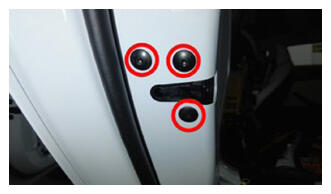

- Install and hand-tighten the bolts (x3) that attach the LH rear door latch to the rear of the LH rear door.

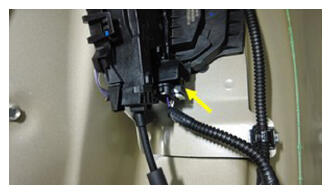

- Connect the LH rear door electrical harness to the LH rear door latch connector.
- Adjust LH rear door gap and flush at the LH rear door striker.
- Tighten the bolts (x3) that attach the LH rear door latch to the rear of the LH rear door.
10 N.m (7.4 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless Ratchet/Impact Driver
- 2 in extension
- Torx T30 socket
- Install the LH rear window regulator assembly. See FRONT AND REAR DOOR GLASS REGULATOR - WINDOW REGULATOR MODULE REAR DOOR LH - REMOVE AND REPLACE .
- Connect LV power. See LV BATTERY - LI-ION - DISCONNECT AND CONNECT .
- Install the rear underhood apron. See UNDERHOOD TRIM - REAR APRON ASSEMBLY - REMOVE AND REPLACE .
- Install the LH rear door glass. See FRONT AND REAR DOOR GLASS - GLASS, FRONT DOOR LH - REMOVE AND REPLACE .
- Install the LH rear door puddle light. See INTERIOR TRIM - DOOR TRIM - REAR DOOR TRIM PAD - PUDDLE LAMP - REMOVE AND REPLACE .
- Install the LH rear door trim panel. See INTERIOR TRIM - DOOR TRIM - REAR DOOR TRIM PAD - DOOR TRIM ASSEMBLY - LH - REMOVE AND REPLACE .
- Calibrate the window. See WINDOW REGULATOR (RECALIBRATE) (MODULE RESET/REFLASHED) .
