Front Seat Control Switches - Seat 1st Row LH Switch Package 8Way with Lumbar - Remove And Replace: Remove

  1. Remove the LH front outer side shield from the vehicle. See FRONT SEAT COVERS AND PADS - 1ST ROW OUTBOARD SIDESHIELD, LH - REMOVE AND REPLACE .

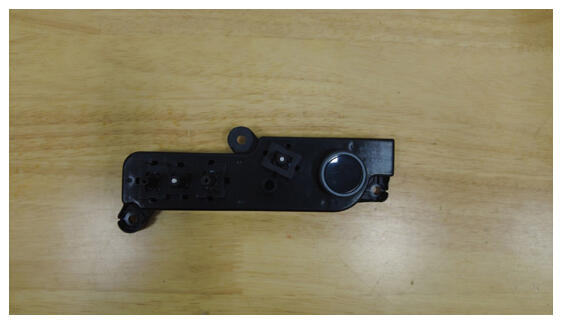

  2. Remove the screws (x3) that securing the 8 way and lumbar switch assembly to the LH front outer side cover, then remove the switch.
    G16588604Courtesy of TESLA, INC.
