2nd Row Seat Frame - 2nd Row Cushion Bracket - Remove And Replace: Install

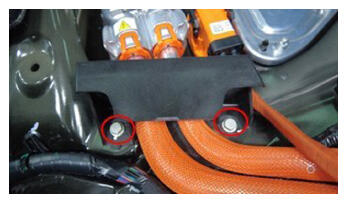

- Install the 2nd row seat cushion bracket to the vehicle and then install the bolts (x2) that secure the bracket.
10 N.m (7.4 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Cordless 1/4 in Dr Ratchet
- 4 in extension
- 10 mm socket
- Ratchet/torque wrench
- Hexagon - 1060071-00-A (for installation only)
- Install the LH lower B-pillar trim. See A - B - C POST INTERIOR TRIM - B - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE
- Install the LH lower A-pillar trim. See A - B - C POST INTERIOR TRIM - A - PILLAR LOWER ASSEMBLY, LH - REMOVE AND REPLACE
- Install the LH instrument panel end cap. See DASH PANEL - END CAP, LH - REMOVE AND REPLACE
- Install the 2nd row seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE
- Install the 2nd row seat LH side bolster. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE
