2nd Row Seat Back Hardware - 2nd Row Seatback Handle Bezel - LH - Remove And Replace: Remove

  1. Open the LH rear door.
  2. Lower the LH rear window.
  3. Fold the LH 2nd row seat down.

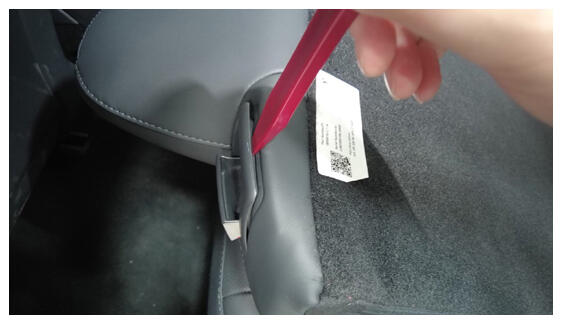

  4. Use a pry tool to release the clips (x2) that attach the LH 2nd row seat back handle bezel to the LH 2nd row seat back handle assembly, and then remove the bezel from the handle assembly.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16589009Courtesy of TESLA, INC.
