2nd Row Seat Assemblies - 2nd Row Armrest System - Remove And Replace: Remove

  1. Remove the 2nd row LH seat side bolster. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW BOLSTER - LH - REMOVE AND REPLACE .
  2. Remove the 2nd row lower seat cushion. See 2ND ROW SEAT ASSEMBLIES - 2ND ROW SEAT CUSHION - REMOVE AND REPLACE .
  3. Remove the 2nd row LH seat back hinge bracket. See 2ND ROW SEAT BACK HARDWARE - 2ND ROW SEATBACK HINGE BRACKET ASSEMBLY - LH - REMOVE AND REPLACE .
  4. Remove the 2nd row armrest closeout. See 2ND ROW SEAT BACK HARDWARE - 2ND ROW TRIM - BLACK ARMREST CLOSEOUT ASSEMBLY - REMOVE AND REPLACE .
  5. Remove the bolts (x2) that secure the center armrest bracket to the seat frame.

    Tip: Use of the following tool(s) is recommended:

    • Cordless Ratchet/Impact Driver
    • Torx T40 socket
    • Flex head ratchet/flex head torque wrench (for installation only)
    G16588923Courtesy of TESLA, INC.

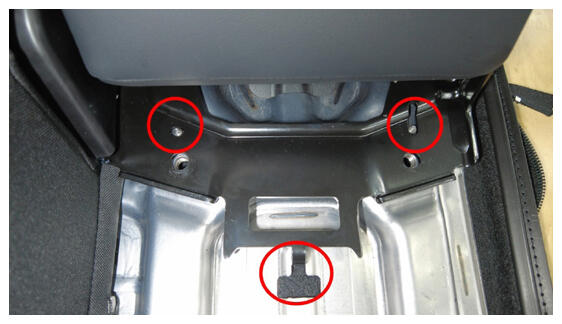

  6. Release the clips and then pull the center armrest outward to remove it from the seat back.
    WARNING: The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
    multimedia:A supplement to the article is available.
    G16588925Courtesy of TESLA, INC.
    G16588926Courtesy of TESLA, INC.
